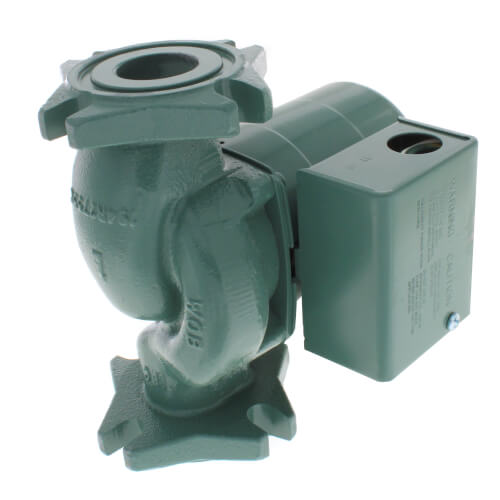

0010-MSF2-IFC | Circulator Pump | Cast Iron | 1/20 HP | 115V | Single Phase | 0.91A | 3250 RPM | Flanged | 31 GPM | 11ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0010 | Taco

1/20HP 115V 3Spd CI Flgd Circ. The Taco 0010-MSF2-IFC is a 1/20HP 115V 3-speed cast iron flanged circulator pump. It is designed for use in residential and light commercial applications, and is ideal for circulating hot water in hydronic heating systems. The pump features a durable cast iron construction for long-lasting performance, and its 3-speed motor provides adjustable flow rates to meet the specific requirements of your system. With its compact size and easy installation, the Taco 0010-MSF2-IFC is a reliable and efficient solution for your hot water circulation needs. Our HVAC supply store offers the best prices and fast shipping on Taco products. Shop now and save!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0010 3-Speed Service Pump is designed as an ideal replacement circulator for service contractors to use on any emergency no-heat call. The 0010 3-Speed replaces most commonly used circulators. Simply install it and set the speed to match the original pump performance. The handy new four bolt flange matches up to any pump regardless of style, type or age.

Features:

• 3-Speed Switch
• Fine tune to system requirements
• Highest performance & starting torque in class
• Heavy duty construction for longer life
• 4-bolt universal flange (0010 only)
• Removable high-flow Integral Flow Check (IFC+)
• Replaceable cartridge design
• Quiet, efficient operation
• Self lubricating, no mechanical seal
• Wide range of applications
• Cast Iron, flanged construction

Replacement Parts List:

• Casing O-Ring: 0010-032RP
• Flange Gasket Set: 007-007RP
• Capacitor or PC Board: 007-002RP
• Cartridge Assembly Complete: 0010-031RP
• Valve Addembly Trans/Relay: 0012-021RP
