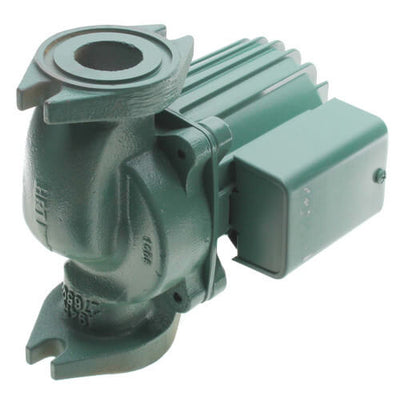

0010-F3-1IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Integral Flow Check | Series 0010 | Taco

ACO 0010-F3-1IFC 1/8HP 115V CI Flgd W/ FLOWCHCK The ACO 0010-F3-1IFC is a 1/8 HP, 115V, capacitor-start, capacitor-run motor with a flanged mount and a flow switch. It is designed for use in HVAC applications where airflow monitoring is required. The motor is constructed with a corrosion-resistant cast iron frame and an aluminum fan cover. It has a permanently lubricated ball bearing system for long life and quiet operation. The motor is rated for continuous duty and is suitable for use in wet or dry locations. The flow switch is a paddle-type switch that is mounted on the motor shaft. It is designed to detect airflow and send a signal to the controller when airflow is present. The flow switch is adjustable to allow for different airflow settings. The ACO 0010-F3-1IFC is a reliable and efficient motor that is ideal for use in HVAC applications where airflow monitoring is required. We offer the best prices and fast shipping for your products!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Cast Iron Taco 0010-F3-1IFC Circulator Pump with an Integral Flow Check (IFC) is designed to reduce installation costs when using Taco 0010 circulators. The bulit-in IFC increases the flow performance when compared to regular in-line check valve. Taco 0010-F3-1IFC model can be used for medium head, medium/higher flow residential or light commercial applications such as hydronic heating, radiant floor heating, and hydro-air fan coils. Both the IFC (Integral Flow Check) and circulator pump cartridge are easily accessed for service and eliminate the need for replacing the entire unit.

Applications:

• Hydronic Heating/Cooling
• Radiant Heating
• Zoning with Pumps
• Hydro-Air Fan Coils

Features:

• Integral Flow check (IFC) Patent #5,664,939
• Prevents gravity flow
• Eliminates separate in-line flow check
• Reduces installed cost, easy to service
• Improved performance vs. In-line flow checks
• Unique replaceable cartridge-Field serviceable
• Unmatched reliability-Maintenance free
• Quiet, efficient operation
• Direct drive-Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output-Compact design
• Wide range of applications
• Cast Iron or Bronze construction, Flanged connections

Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0010-021RP
Valve Addembly Trans/Relay: 0012-021RP
