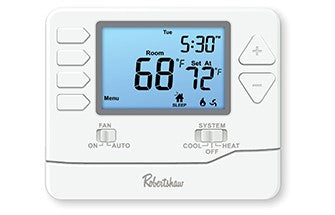

RS9220 | Programmable Thermostat | Universal Multi Stage | ROBERTSHAW

ROBERTSHAW RS9220 Programmable Thermostat The RS9220 by ROBERTSHAW is a versatile and advanced digital thermostat designed for precise temperature control in residential and commercial applications. Featuring a 24V/Millivolt power supply, this programmable thermostat offers multiple operating modes, including conventional and heat pump systems. Its intuitive user interface boasts a 4.6-inch backlit display for clear visibility and ease of use. The 5-1-1/2H/2C programming schedule allows for customizable temperature settings throughout the day and week. With a temperature range of 45-90°F, the RS9220 ensures optimal comfort levels. As a multi-stage thermostat, the RS9220 provides efficient energy management by controlling both heating and cooling stages. Its sleek design and compact size make it suitable for various room sizes and décor. Key Features: * 24V/Millivolt power supply * Programmable operation for multi-stage heating and cooling systems * 4.6-inch backlit display * 5-1-1/2H/2C programming schedule * Temperature range: 45-90°F * Intuitive user interface Our HVAC supply store offers the best prices and fast shipping for your ROBERTSHAW RS9220 Thermostat. Upgrade your temperature control system today!

Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat. Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered  OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Series ApplicationMulti-Stage 2 Heat / 2 Cool Programmable Factory Part NumberRS9220 Dimensions4.7 x3.8 x 1in (119.6 x 97.6 x 26mm) Mounting TypeWall or junction box Temperature Range41°F to 95°F (5°C to 35°C) Power Source24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included) TerminalsRh, Rc, C, Y, Y2, W, W2, G, O, B
