Get your Special Pricing!

Brand: KMC KREUTER CONTROLSSKU: RCC-1001

List Price
~~$68.36~~

Web Price:

$52.51

Availability: IN STOCK

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

RCC-1001 | Relay;reversing;9#c-o | KMC KREUTER CONTROLS

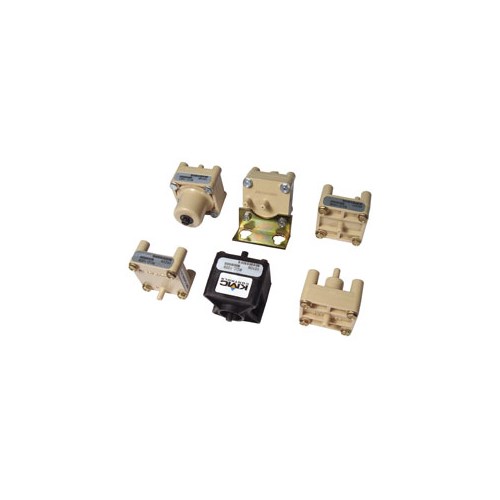

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for RCC-1001

RCC-1001/1012/1101/1112 Reversing Relays (pilot capacity) are designed for reversing a proportional signal from a controlling device. Factory adjusted to decrease branch line pressure as the input pressure increases. Comes with a bias adjustment and two factory calibration points (8 and 9 psi).
RCC-1006/1106 Low Pressure Selector Relays are designed to control a final device based on the lower of two pneumatic input signals.
RCC-1008/1108 High Pressure Selector Relays are designed to select the greater of two pneumatic signals as the control signal for a final device. These signals must be supplied by “relieving” type devices such as thermostats and receiver-controllers.
RCC-1009/1109 Adjustable Diverting/Switching Relays are SPDT devices. They divert one signal to either of two branch circuits or select one of two inputs and transmit it to another control device. They can also be used to feed or exhaust a circuit.
RCC-1102 Averaging Relay is designed for applications that do not require large amounts of output air volume. Suitable for room or zone applications such as VAV terminals. Use where the output signal to the controlled device must be the average of two source signals.
