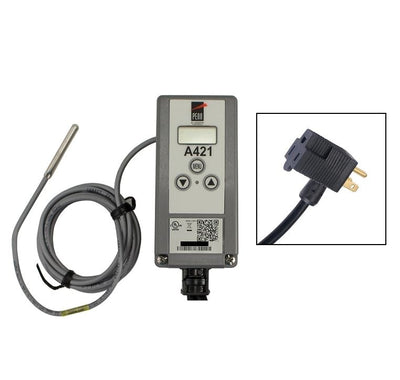

A421ABJ-02C | Single Stage Temp Controller with Sensor, Duty-Cycle Timer, 120/240VAC, NEMA1, 6' 7" lead, -40 to 212F, HTG/CLG | JOHNSON

Electronic Single Stage Temperature Control SKU: A421ABJ-02C Brand: JOHNSON Description: Introducing the Johnson Electronic Single Stage Temperature Control, designed for precise temperature regulation in demanding industrial applications. This compact and reliable device features: * 120/240 Vac voltage range for versatility * UL Type 1 construction for added durability * IP20 protection against dust and moisture * SPDT single-pole, double-throw switch for efficient control * Single piggyback cord for easy installation * Temperature sensor with a wide range (-40 F to 212 F) for accurate temperature monitoring With its rugged construction, user-friendly operation, and precise temperature control capabilities, this temperature control is an ideal solution for industrial environments such as manufacturing facilities, warehouses, and more. Call to action: Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Description

The A421 Series Standard Electronic Temperature Controls are single stage, electronic temperature controls with a single-pole, double-throw (SPDT) output relay. The controls feature an adjustable backlit LCD for viewing the temperature and status of other functions, and a three-button touchpad for setup and adjustment. An LED indicates the on and off status of the output relay.

The A421 Controls are available in low-voltage 24 VAC and high-voltage 120 VAC or 240 VAC models, which provide options for most refrigeration and HVAC applications.

The A421 Controls provide heating or cooling control, sensor offset, temperature setback, adjustable antishort cycle delay, and a restricted user adjustment mode. The temperature units can display in °F or °C. The temperature adjustment range is -40°F to 212°F or -40°C to 100°C.

The A421 Controls are available in Type 1, IP20 highimpact plastic enclosures suitable for surface or DIN rail mounting and Type 4X, IP66 watertight, corrosionresistant surface mount enclosures. The factory-equipped power cords provide convenient plug-in connection and control of 120 VAC heating and cooling equipment.

Applications

You can use the A421 Control to manage a wide range of single-stage refrigeration or HVAC equipment. Sample temperature control applications include:

• Temperature monitoring and alarming
• On and off control of boilers and chillers
• Boiler and chiller pump control
• Heating and cooling control
• Cooling tower fan control based on water temperature
• Supply, makeup, and mixed air temperature control
• Temperature actuated valve control
• Supply and makeup air damper and fan control
• Condenser fan control based on condenser temperature.

Features and benefits

Control front panel LCD

Displays the temperature, parameters, and status. You can adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.

Basic and Advanced programming menu

Provides two levels of parameter adjustment and control. You can set up advanced features in one menu and easily adjust basic parameters in the other menu.

On and off temperature adjustment

Select the temperature values at which the relay turns on and off, which automatically defines the Heating or Cooling mode of operation.

Switch-activated temperature setback

Shift the On or Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.

Adjustable anti-short cycle delay (ASd)

Select the minimum time the output relay remains off before the next on cycle; avoid short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.

Adjustable sensor offset

Adjust the displayed temperature to the actual sensed temperature.

Optional restricted adjustment mode

Restrict the On or Off adjustment to your defined temperature range.

Sensor Failure mode

Select the relay On or Off state in the event of a sensor or sensor wire failure.

Backlight brightness level

Adjust the LCD backlight intensity.
