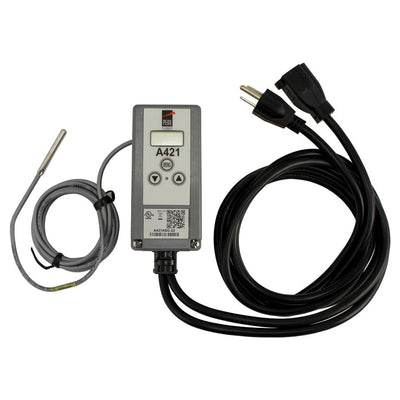

A421ABG-02C | Single Stage Temp Controller with Sensor & Power Cords, 120VAC, NEMA1, 6' 7" lead, -40 to 212F, HTG/CLG | JOHNSON

Johnson Electronic Single Stage Temperature Control: Precise Temperature Regulation for Industrial Applications This Johnson Electronic Single Stage Temperature Control (model A421ABG-02C) provides precise temperature control for industrial applications. With its 120/240Vac power supply and UL Type 1 IP20 rating, it meets industry standards for safety and durability. The SPDT (Single Pole Double Throw) switch allows for versatile control options. Key Features: • Wide temperature range: -40°F to 212°F • 12 Amp power cord for reliable power supply • 2m (6'-6") temperature sensor for accurate temperature monitoring • Replaces A419ABG-3C model, ensuring compatibility Benefits: • Enhanced efficiency and temperature control • Durable construction for demanding environments • Compatible with existing systems Applications: • Industrial machinery • HVAC systems • Process control equipment • Food and beverage industries Our HVAC supply store offers this Johnson Temperature Control at competitive prices with fast shipping. Upgrade your industrial temperature regulation system today and experience the benefits of precise control and reliability.

Description

The A421 Series controls are single stage, electronic temperature controls with a single-pole, double-throw (SPDT) output relay. The controls feature an adjustable backlit LCD for viewing the temperature and status of other functions, and a three-button touchpad for setup and adjustment. An LED indicates the On/Off status of the output relay.

The A421 controls are available in low voltage 24 VAC and high voltage 120 or 240 VAC models, which provide options for most refrigeration and HVAC applications.

The A421 controls provide heating or cooling control, sensor offset, temperature setback, adjustable anti-short cycle delay, and a restricted user adjustment mode. The temperature units can be displayed in °F or °C. The temperature adjustment range is -40 to 212°F or -40 to 100°C.

The A421 controls are available in Type 1, IP20 high-impact plastic enclosures suitable for surface or DIN rail mounting and Type 4X, IP66 watertight, corrosion-resistant surface mount enclosures.

The factory-equipped power cords provide convenient plug-in connection and control of 120 VAC heating and cooling equipment.

Refer to the A421 Series Electronic Temperature Controls Product Bulletin (LIT-12011972) for important product application information.

Applications

The A421 Electronic Temperature Control can be used to control a wide variety of single-stage refrigeration or HVAC equipment.

• Sample temperature control applications include:
• temperature monitoring and alarming
• on/off control of boilers and chillers
• boiler and chiller pump control
• heating and cooling control
• cooling tower fan control based on water temperature
• supply, makeup, and mixed air temperature control
• temperature actuated valve control
• supply and makeup air damper and fan control
• condenser fan control based on condenser temperature.

Features and Benefits



• Control Front Panel LCD – displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.
• Basic and Advanced Programming Menu – provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu.
• On/Off Temperature Adjustment – allows you to select the temperature values at which the relay turns On and Off, which automatically defines the Heating or Cooling mode of operation.
• Switch-Activated Temperature Setback – allows you to shift the On/Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.
• Adjustable Anti-Short Cycle Delay – allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
• Adjustable Sensor Offset – allows you to adjust the displayed temperature to the actual sensed temperature.
• Optional Restricted Adjustment Mode – allows you to restrict the On/Off adjustment to your defined temperature range.
• Sensor Failure Mode – allows you to select the relay On/Off state in the event of a sensor or sensor wire failure.
• Backlight Brightness Level – allows you to adjust the LCD backlight intensity.



Repair Information

Do not attempt to repair or recalibrate the A421 Series Electronic Temperature Control. In case of a defective or improperly functioning control, contact your nearest Authorized Johnson Controls/PENN® Distributor or Sales Representative.

When contacting your Johnson Controls/ PENN distributor, have the model number of the control available. This number can be found on the label inside the cover of the control.

Ordering Information

Contact your nearest Johnson Controls/ PENN Distributor or Sales Representative to order sensors, mounting hardware, and other accessories used to install A421 controls.

Contact your local Johnson Controls/PENN representative for more information on options available for high-volume purchase models with specific application requirements
