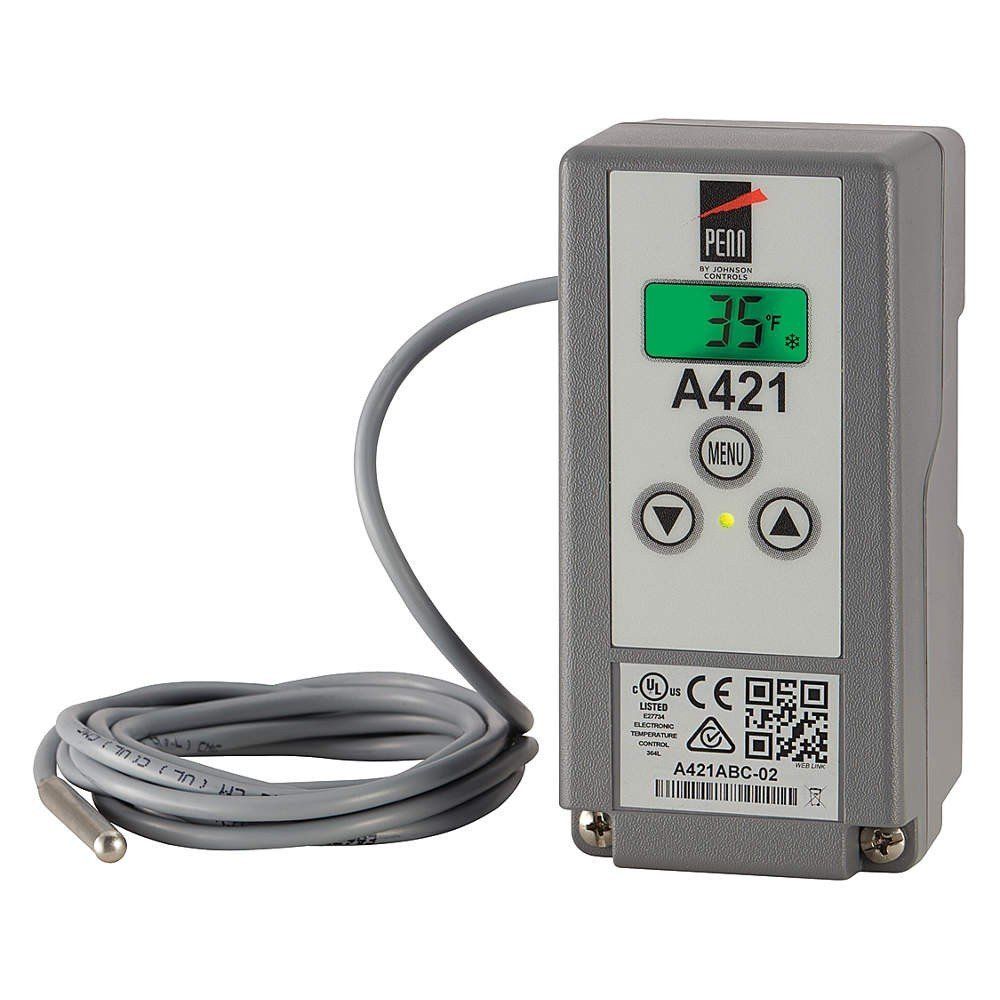

A421ABC-02C | Single Stage Temp Controller with Sensor, 120/240VAC, NEMA1, 6' 6" lead, -40 to 212F, HTG/CLG | JOHNSON

120/240V Electronic Single Stage Temperature Control: JOHNSON A421ABC-02C The JOHNSON A421ABC-02C is a versatile and reliable electronic temperature control designed for industrial and commercial applications. This single-stage controller offers precise temperature management with its advanced electronic circuitry and a wide range of features. Key Features: • Wide voltage range: 120/240V for compatibility with various electrical systems • Electronic operation: Provides accurate and responsive temperature control • Single-stage control: Simple and effective temperature management for various applications • UL Type 1 IP20 enclosure: Protects against dust, moisture, and other environmental factors • SPDT output: Allows for direct control of heating or cooling equipment • Built-in temperature sensor: Monitors temperature over a range of -40 to 212°F • 2M (6'-6") sensor length: Provides flexibility in sensor placement Benefits: • Enhanced temperature accuracy and stability • Simplified installation and setup • Reliable performance in harsh industrial environments • Reduced energy consumption by optimizing temperature control • Improved safety and protection against temperature-related issues Applications: The A421ABC-02C temperature control is ideal for various industrial and commercial applications, including: • HVAC systems: Regulating temperature in buildings and facilities • Process heating: Controlling temperature in industrial processes • Environmental chambers: Maintaining specific temperature conditions Shop our HVAC supply store today for the best prices and fast shipping on the JOHNSON A421ABC-02C temperature control and other industrial products. Our commitment to quality and customer satisfaction ensures that you receive the best products and services for your industrial needs.

Description

The A421 Series Standard Electronic Temperature Controls are single stage, electronic temperature controls with a single-pole, double-throw (SPDT) output relay. The controls feature an adjustable backlit LCD for viewing the temperature and status of other functions, and a three-button touchpad for setup and adjustment. An LED indicates the On/Off status of the output relay.

The A421 Controls are available in low-voltage 24 VAC and high-voltage 120 VAC or 240 VAC models, which provide options for most refrigeration and HVAC applications.

The A421 Controls provide heating or cooling control, sensor offset, temperature setback, adjustable antishort cycle delay, and a restricted user adjustment mode. The temperature units can be displayed in °F or °C. The temperature adjustment range is -40°F to 212°F or -40°C to 100°C.

The A421 Controls are available in Type 1, IP20 highimpact plastic enclosures suitable for surface or DIN rail mounting and Type 4X, IP66 watertight, corrosionresistant surface mount enclosures. Refer to the A421 Series Electronic Temperature Controls Product Bulletin (LIT-12011972) for important product application information.

Applications

You can use the A421 Controls to manage a wide range of single-stage refrigeration or HVAC equipment. Sample temperature control applications include:

• Temperature monitoring and alarming
• On/off control of boilers and chillers
• Boiler and chiller pump control
• Heating and cooling control
• Cooling tower fan control based on water temperature
• Supply, makeup, and mixed air temperature control
• Temperature actuated valve control
• Supply and makeup air damper and fan control
• Condenser fan control based on condenser temperature.

Features and benefits

Control front panel LCD

Displays the temperature, parameters, and status. You can adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.

Basic and Advanced programming menu

Provides two levels of parameter adjustment and control. You can set up advanced features in one menu and easily adjust basic parameters in the other menu.

On/Off temperature adjustment

Select the temperature values at which the relay turns On and Off, which automatically defines the Heating or Cooling mode of operation.

Switch-activated temperature setback

Shift the On or Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.

Adjustable anti-short cycle delay

Select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.

Adjustable sensor offset

Adjust the displayed temperature to the actual sensed temperature.

Optional restricted adjustment mode

Restrict the On or Off adjustment to your defined temperature range.

Sensor failure mode

Select the relay On or Off state in the event of a sensor or sensor wire failure.

Backlight brightness level

Adjust the LCD backlight intensity.
