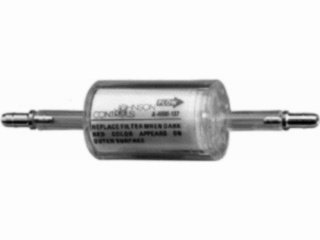

A-4000-1037 | FILTER OIL IN-LINE | JOHNSON

Pneumatic In Line Oil Removal Filter, 1/4" Barb Pneumatic In Line Oil Removal Filter, 1/4" Barb Connection Replaces A-4000-137 (m5) products are specifically engineered to remove oil aerosols and solid particulates from compressed air systems. This Pneumatic In Line Oil Removal Filter can handle flow rates up to 40 SCFM and is designed to provide exceptional filtration efficiency of 99.99% at 0.5 microns. The filter element is constructed of high-quality borosilicate microfiber and is pleated to provide a large surface area for efficient filtration. The filter housing is made of durable aluminum and is equipped with a clear polycarbonate bowl for easy visual inspection of the filter element. The Pneumatic In Line Oil Removal Filter is easy to install and maintain, and it comes complete with a mounting bracket and a wrench for easy servicing. Shop now at our HVAC supply store for the best prices and fast shipping for your products!

Description

Combining coalescing and activated carbon filters in series provides clean, oil free air by removing both oil aerosols and vapors in pneumatic control systems.

Note: The air supply to this filter combination must be from a properly broken-in-air compressor producing less than 6 ppm aerosol oil (as measured by a Johnson Controls® A-4000-120 Oil Indicator on the compressor tank outlet) and must also pass through a properly operating air dryer.

Repair Information

If the oil removal filter fails to operate within its specifications, replace the unit. For a replacement filter, contact the nearest Johnson Controls® representative

• A-4000 Oil Removal Filter
• 00.25 inch Barb Connection
• Inline Type
