1F95-1291 | 24v/Millivolt 2 Or 3 Wire Universal Multi-stage 2h-2c Or Heat Pump 4H-2C Dual Po | WHITE-RODGERS

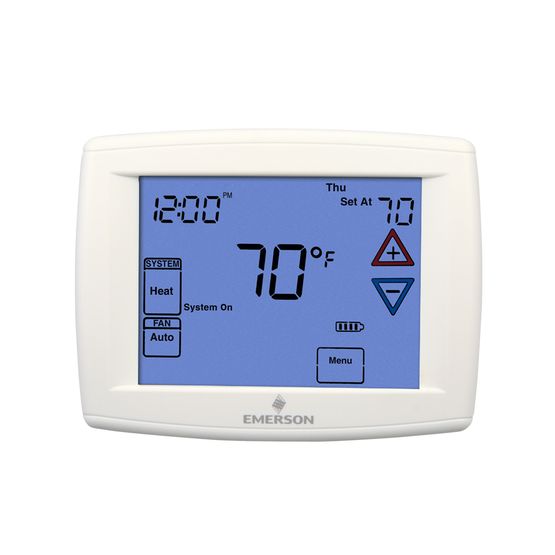

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F95-1291
Documents and manuals
WHITE-RODGERS 1F95-1291 Documents
Overview
Details for 1F95-1291
WHITE-RODGERS Programmable Thermostat (1F95-1291)24v/Millivolt 2 Or 3 Wire Universal Multi-stage 2h-2c Or Heat Pump 4H-2C Dual Powered Digital Programmable / Non Programmable Touchscreen Thermostat With Auto Change Over Keypad Lockout De Humidificat. The WHITE-RODGERS 1F95-1291 thermostat is a versatile and feature-rich option for controlling your HVAC system. It offers both programmable and non-programmable modes, allowing you to customize the temperature settings to meet your comfort and energy-saving needs. The large touchscreen display provides clear and easy-to-read information, while the keypad lockout feature prevents accidental changes to the settings. Additionally, the auto changeover function automatically switches between heating and cooling modes based on the temperature, ensuring optimal comfort levels. Our HVAC supply store - We offer the best prices and fast shipping for your products!
Universal, Commercial, Humidity Control and Single Stage Thermostats provide ultimate comfort, features and performance.
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
- Humidification/dehumidification control
- Commercial model offers occupied damper or economizer control
- Keypad lockout and set-point temperature limits
Specifications
- Program Options
- Programmable - 7 Day, 5+1+1 Day or Non-Programmable
- Program Periods Per Day Options
- 4, 2, None
- Stages Heat/Cool
- Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
- 3-Wire Zone Valve Connections
- Yes
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- Yes, Humidification and Dehumidification Option
- Heat Pump Dual Fuel Control
- Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
- Remote Sensor Options
- 1 Indoor or Outdoor
- Power Source
- Battery, Hardwire, Power Stealing
- Auto Changeover (Heat/Cool)
- Yes
- Fan Option
- Auto, On, Programmable Fan or Comfort Circulating Fan
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- Total or Partial
- Set-Point Temperature Limits
- Yes
- Display Type
- 12 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
