1F95-0680 | Blue Series 6 Inch Thermostat | Universal Multi Stage | WHITE-RODGERS

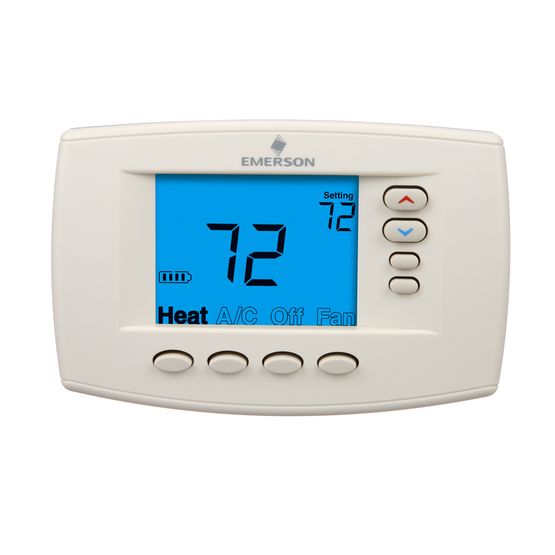

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F95-0680
Documents and manuals
WHITE-RODGERS 1F95-0680 Documents
Overview
Details for 1F95-0680
Advanced Commercial Thermostat: White-Rodgers 1F95-0680
The 1F95-0680 from White-Rodgers is an advanced commercial thermostat designed for multi-stage heating and cooling systems. Featuring a large backlit digital touchscreen, it allows users to easily program and monitor their comfort settings.
Its 2 or 3 wire compatibility offers flexibility in wiring, while the 7-day programmable or non-programmable modes provide customizable scheduling options. The 24v/Millivolt operation ensures compatibility with a wide range of HVAC systems.
The automatic changeover function seamlessly switches between heating and cooling modes, ensuring optimal temperature control. Additionally, the remote sense feature accurately measures the room temperature, providing precise temperature regulation.
With its user-friendly interface, flexible operation, and advanced temperature control capabilities, the White-Rodgers 1F95-0680 is an ideal solution for commercial applications seeking efficiency and comfort.
Our HVAC supply store offers the 1F95-0680 at competitive prices with fast shipping. Upgrade your commercial HVAC system today!
Universal Thermostat offering more premium features than higher priced competitive models.
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option with use of outdoor sensor or can be used with a fossil fuel kit supplied by equipment OEM
- Easy Reader model is easy to read and easy to use.
- Commercial offers occupied damper or economizer control and locking cover and subbase
- Keypad lockout and set-point temperature limits
Specifications
- Program Options
- Programmable - 7 Day, 5+1+1 Day or Non-Programmable
- Program Periods Per Day Options
- 4, 2, None
- Stages Heat/Cool
- Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, A1
- 3-Wire Zone Valve Connections
- Yes
- Millivolt Compatible
- Yes
- Economizer Connections
- Yes
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- Yes, Optional Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat or Electric Heat
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
- Remote Sensor Options
- 1 Indoor or Outdoor
- Power Source
- Battery, Hardwire, Power Stealing
- Auto Changeover (Heat/Cool)
- Yes
- Fan Option
- Auto, On, Programmable Fan, Comfort Circulating Fan or Occupancy Fan Option with Selectable Pre-Purge (1-3 Hours)
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- Total or Partial
- Set-Point Temperature Limits
- Yes
- Display Type
- 6 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
