1F95-0671 | Blue Series 6 Inch Thermostat | Universal Multi Stage | WHITE-RODGERS

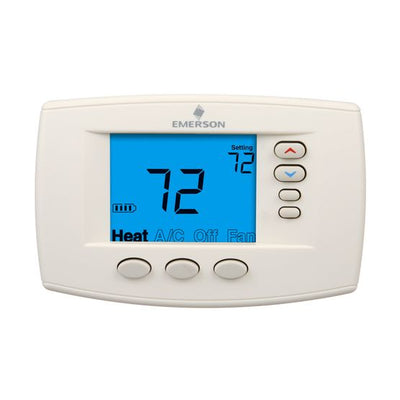

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 1F95-0671

Universal Thermostat offering more premium features than higher priced competitive models.

Universal models quickly configure for single stage, multi-stage or heat pump
Heat pump dual fuel option with use of outdoor sensor or can be used with a fossil fuel kit supplied by equipment OEM
Easy Reader model is easy to read and easy to use.
Commercial offers occupied damper or economizer control and locking cover and subbase
Keypad lockout and set-point temperature limits

Program Options: Programmable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options: 4, 2, None
Stages Heat/Cool: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
Style: Horizontal
Typical Applications: Gas/Oil/Electric
Terminals: RC, RH, C, G, Y, Y2, W/E, W2, O/B, L, 6, +, S, -
3-Wire Zone Valve Connections: Yes
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: Yes, Optional Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat or Electric Heat
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Remote Sensor Options: 1 Indoor or Outdoor
Power Source: Battery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool): Yes
Fan Option: Auto, On, Programmable Fan
Filter Change Reminder: Yes
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: Total or Partial
Set-Point Temperature Limits: Yes
Display Type: 6 square in.
Backlight: Key Press or Continuous with Common Wire
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
