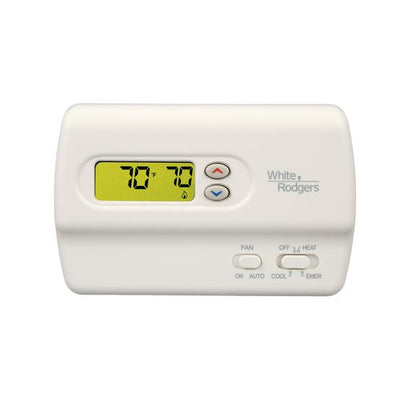

1F89-211 | Classic 80 Series Thermostat | Heat Pump | WHITE-RODGERS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F89-211
Documents and manuals
WHITE-RODGERS 1F89-211 Documents
Overview
Details for 1F89-211
24-Volt Multi-Stage Heat Pump Thermostat: The WHITE-RODGERS 1F89-211 Digital Thermostat is a non-programmable option for multi-stage heat pump systems. It operates on a 24-volt power supply and features a 2H-1C configuration, supporting two heating stages and one cooling stage. The temperature range it supports is between 45 to 90 degrees Fahrenheit, and it conveniently replaces the 1F89-11 model. Shop our HVAC supply store for the best prices and fast shipping on the 1F89-211 thermostat and all your HVAC needs!
Our best selling digital thermostat available as a Heat Pump Thermostat offering proven performance and reliability.
- Hardwired model
- Heat Pump model
- Permanent program retention during power loss
- Configuration menu allows keypad selection of options
- Selectable energy management recovery (1F80-361 / 1F87-361 / 1F82-261)
Specifications
- Program Options
- Non-Programmable
- Program Periods Per Day Options
- None
- Stages Heat/Cool
- Heat Pump - 2H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- R, C, W2, E, Y, O/B, G, L
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- No
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- No
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 1.8 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
