1F89-0211 | 24v Multi Stage Heat Pump Non Programmable Digital Thermostat 2H-1C Emerson Blue | WHITE-RODGERS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F89-0211
Documents and manuals
WHITE-RODGERS 1F89-0211 Documents
Overview
Details for 1F89-0211

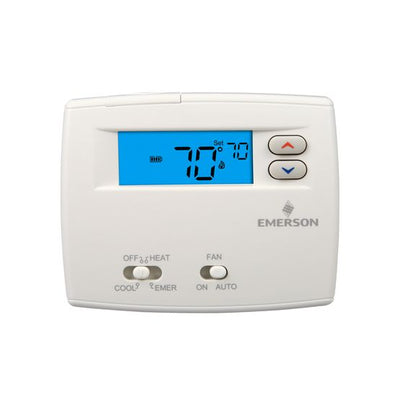

24v Multi Stage Heat Pump Non Programmable Digital Thermostat 2H-1C Emerson Blue 2" Display [1F89-0211]
The WHITE-RODGERS 1F89-0211 thermostat is a 24-volt multi-stage heat pump thermostat that features a non-programmable digital interface and a blue 2-inch display. This thermostat is ideal for controlling multi-stage heat pumps and provides precise temperature control for improved comfort and energy efficiency.
With its user-friendly interface, the thermostat allows for easy temperature adjustments and mode selection. The large, backlit display provides clear visibility, even in low-light conditions. The thermostat also includes a variety of programmable settings, including temperature setbacks, fan settings, and filter reminders.
The 1F89-0211 thermostat is compatible with most multi-stage heat pumps and is designed for simple installation. Its compact size and sleek design make it a suitable choice for any home or office.
Key Features:
- 24-volt multi-stage heat pump thermostat
- Non-programmable digital interface
- Blue 2-inch display
- Easy-to-use controls
- Programmable settings
- Compatible with most multi-stage heat pumps
- Simple installation
Shop our HVAC supply store for all your HVAC needs. We offer the best prices and fast shipping on all our products!
Heat pump model, offer a step up from 70 Series.
- Non-programmable
- Programmable, 5/1/1 day, 24 hour, 0-day or non-programmable
- Lighted display for easier low light viewing
- Air filter change indicator option
- Cool Savings™ saves energy during peak A/C demand periods
Specifications
- Program Options
- Non-Programmable
- Program Periods Per Day Options
- None
- Stages Heat/Cool
- Heat Pump - 2H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- R, C, W2, Y, O/B, G, L
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- No
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 2 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
