1F87-361 | 24v/Millivolt Single Stage Digital 7 Day Programmable Thermostat Hardwired Or Ba | WHITE-RODGERS

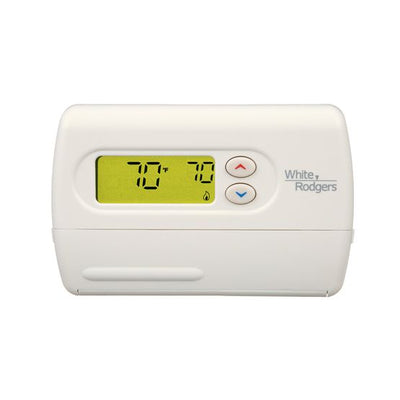

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F87-361
Documents and manuals
WHITE-RODGERS 1F87-361 Documents
Overview
Details for 1F87-361
Enhance Your HVAC System with White-Rodgers 1F87-361 Programmable Thermostat
The White-Rodgers 1F87-361 is a technologically advanced 7-day programmable thermostat designed for efficient and precise temperature control. Whether hardwired or battery-powered, this thermostat provides unparalleled convenience and energy savings.
Key Features and Benefits:
- 24V/Millivolt compatibility for flexible installation
- Single-stage operation for simplified temperature management
- Large, backlit display for clear visibility
- User-friendly interface for easy programming
- 1H-1C configuration, ideal for single-zone heating and cooling systems
- Temperature range of 45-90°F (7-32°C), ensuring comfort levels
- Programmable schedule allows for optimal temperature adjustments throughout the day and night
- Battery backup preserves programming during power outages
Applications:
The White-Rodgers 1F87-361 is ideal for residential and light commercial applications, providing precise temperature control for:
- Homes and apartments
- Small offices and retail stores
- Restaurants and hospitality spaces
Upgrade your HVAC system with the White-Rodgers 1F87-361 Programmable Thermostat and enjoy enhanced comfort, energy efficiency, and peace of mind. Shop now at our HVAC supply store for the best prices and fast shipping on all your HVAC needs!
Our best selling digital thermostat available as a Single Stage Thermostat offering proven performance and reliability.
- Choice of battery powered, dual power or hardwired model
- Fossil fuel or electric heat compatible
- Permanent program retention during power loss
- Configuration menu allows keypad selection of options
- Selectable energy management recovery
Specifications
- Program Options
- Programmable -7 Day
- Program Periods Per Day Options
- 4
- Stages Heat/Cool
- Single Stage - 1H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, C, W, Y, O, B, G
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 2.2 square in.
- Backlight
- Key Press
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
