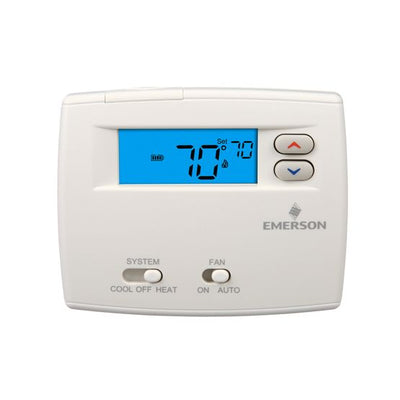

1F86-0244 | Blue Series 2 Inch Thermostat | Conventional Single Stage | WHITE-RODGERS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F86-0244
Documents and manuals
WHITE-RODGERS 1F86-0244 Documents
Overview
Details for 1F86-0244
Precise Temperature Control: WHITE-RODGERS 1F86-0244 Non-Programmable Digital Thermostat
The WHITE-RODGERS 1F86-0244 digital thermostat provides precise temperature control for single-stage heating or cooling systems. Its 24V/millivolt compatibility allows for flexible installation in both low-voltage and line-voltage systems.
Effortless Operation:
This thermostat features a large, easy-to-read 2 square inch display with clear digits, ensuring convenient temperature adjustments. Its intuitive interface allows for quick and hassle-free operation.
Versatile Functionality:
Hardwired or battery-powered, this thermostat offers versatile installation options. Its 45-90°F temperature range and 1H-1C configuration make it suitable for controlling a wide variety of HVAC systems.
Shop our HVAC supply store for Unbeatable Prices and Fast Shipping!
Single stage model, offer a step up from 70 Series.
- Non-programmable
- Programmable, 5/1/1 day, 24 hour, 0-day or non-programmable
- Lighted display for easier low light viewing
- Air filter change indicator option
- Cool Savings™ saves energy during peak A/C demand periods
Specifications
- Program Options
- Non-Programmable
- Program Periods Per Day Options
- None
- Stages Heat/Cool
- Single Stage - 1H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- R, C, W, Y, O/B, G
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- No
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 2 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
