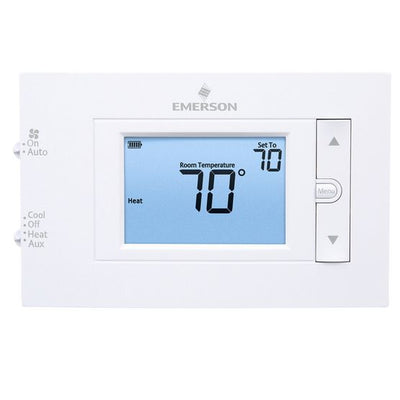

1F83H-21NP | 80 Series Clear Choice 24v 4.5" Display Digital Multistage Non Programmable Heat | WHITE-RODGERS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F83H-21NP
Documents and manuals
WHITE-RODGERS 1F83H-21NP Documents
Overview
Details for 1F83H-21NP
80 Series Clear Choice 24v 4.5" Display Digital Multistage Non Programmable Heat Pump Thermostat With Keypad Lockout & Temp Limits 2H-1C 45-99F 2 Wire [sku]
The White-Rodgers 80 Series Clear Choice thermostat is a multistage non-programmable heat pump thermostat ideal for controlling heating and cooling systems in residential and commercial buildings. It features a large 4.5" digital display, providing clear and easy-to-read temperature readings. The thermostat is designed to provide precise temperature control with its +/- 0.5°F accuracy.
Key Features:-
* Digital display for easy temperature readout
* Multistage operation for efficient heating and cooling
* Non-programmable for simple operation
* Keypad lockout to prevent unauthorized changes
* Temperature limits for added safety
* Compatible with most heat pump systems
* 2H-1C configuration for multi-stage heating and cooling
* Temperature range of 45-99°F (7-37°C)
* 2-wire connection for easy installation
Order your White-Rodgers 80 Series Clear Choice thermostat today from our HVAC supply store! We offer the best prices and fast shipping on all of your HVAC needs.
Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.
- Large display, bright backlight, high contrast screen
- Easy to install with built-in level, simple set-up menu and separate subbase
- Non-Programmable
- Dual fuel control, no outdoor sensor required, standard on all staging models
- Auto changeover on all universal models
- Keypad lockout and adjustable heat/cool temperature limits
- 5 year limited warranty for professionals
Specifications
- Program Options
- Non-Programmable
- Program Periods Per Day Options
- None
- Stages
- Heat Pump - 2H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- No
- Economizer Connections
- No
- Humidity Control
- No
- Humidity Control
- R, C, W2, E, Y, O/B, G, L
- Heat Pump Dual Fuel Control
- Yes, No Sensor Required
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- No
- Energy Mgt. Recovery/Early Start
- No
- Keypad Lockout
- Total
- Set-Point Temperature Limits
- Yes
- Display Type
- 4.5 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20-30 Vac, NEC Class II 50/60Hz
- Battery Power Rating
- mV to 30 Vac
- Amp Rating
- Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined
