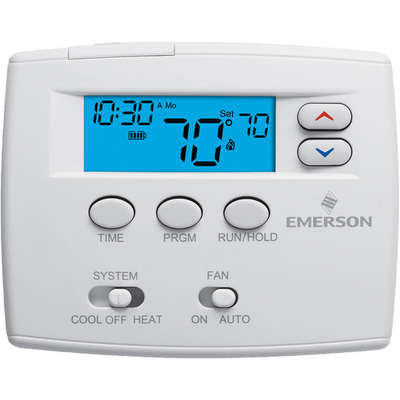

1F80-0224 | Blue Series 2 Inch Thermostat | Conventional Single Stage | WHITE-RODGERS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F80-0224
Documents and manuals
WHITE-RODGERS 1F80-0224 Documents
Overview
Details for 1F80-0224
WHITE-RODGERS 1F80-0224: 24v/Millivolt Low Cost Single Stage Digital Thermostat
The WHITE-RODGERS 1F80-0224 thermostat is a low-cost, single-stage digital thermostat with a 24-hour program. It is designed for use with 24v or millivolt systems and has a temperature range of 45-90 degrees Fahrenheit. The 1F80-0224 is a direct replacement for the 1F80-24 and 1F80-224 thermostats.
Key Features:
* 24-hour programmable timer
* 45-90 degree Fahrenheit temperature range
* Direct replacement for 1F80-24 and 1F80-224 thermostats
Benefits:
* Easy to use and program
* Helps to save energy
* Provides precise temperature control
Applications:
* Residential and commercial buildings
* HVAC systems
* Industrial applications
Shop our HVAC supply store today for the best prices and fast shipping on the WHITE-RODGERS 1F80-0224 thermostat!
Single stage model, offer a step up from 70 Series.
- Programmable, 24 hour
- Programmable, 5/1/1 day, 24 hour, 0-day or non-programmable
- Lighted display for easier low light viewing
- Air filter change indicator option
- Cool Savings™ saves energy during peak A/C demand periods
Specifications
- Program Options
- Programmable - 24 Hours
- Program Periods Per Day Options
- 4
- Stages Heat/Cool
- Single Stage - 1H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- R, C, W, Y, O/B, G
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 2 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
