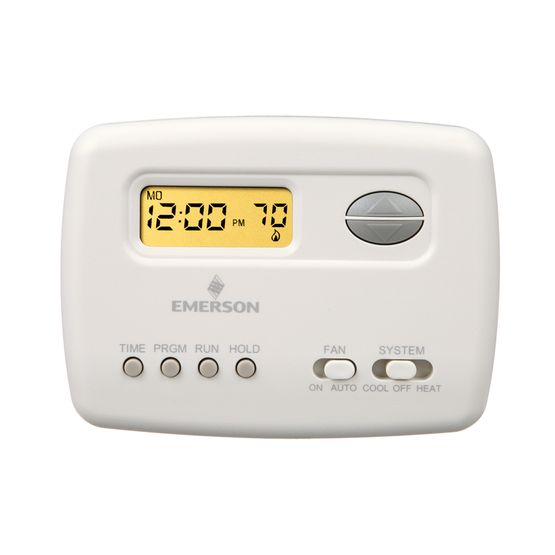

1F78-151 | 24v Or Millivolt Single Stage 5/2 Day Digital Programmable Thermostat Horizontal | WHITE-RODGERS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1F78-151

Jump to: Documents Overview Specifications Reviews

Documents and manuals

WHITE-RODGERS 1F78-151 Documents

Installation Instructions More Info

Overview

Details for 1F78-151

The WHITE-RODGERS 24v or Millivolt Single Stage 5/2 Day Digital Programmable Thermostat (SKU: 1F78-151) provides precise temperature control for industrial and commercial applications. Its horizontal mount design allows for easy installation in various locations. With a temperature range of 45-90F, this thermostat ensures optimal temperature maintenance, maximizing energy efficiency. Its 1H-1C configuration supports both heating and cooling systems, making it versatile for various HVAC applications. The digital display and programmable features enable precise temperature scheduling, providing enhanced comfort and energy savings. Our HVAC supply store offers the best prices and fast shipping on this reliable and feature-rich thermostat, ensuring maximum value for your industrial needs.

The perfect upgrade from mechanical thermostat available as a Single Stage offering economy and value with proven reliability.

Horizontal model
Programmable model
Selectable Celsius or Fahrenheit temperature display
Fossil fuel or electric heat compatible
Electronic accuracy
Temperature accuracy for customers on a budget

Specifications

Program Options: Programmable - 5+2 Day
Program Periods Per Day Options: 4
Stages: Single Stage - 1H/1C
Style: Horizontal
Typical Applications: Gas/Oil/Electric
Terminals: RC, RH, W, Y, O, B, G
3-Wire Zone Valve Connections: No
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: No
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery
Auto Changeover (Heat/Cool): No
Fan Option: Auto, On
Filter Change Reminder: No
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: No
Set-Point Temperature Limits: No
Display Type: 1.2 square in.
Backlight: Key Press
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
