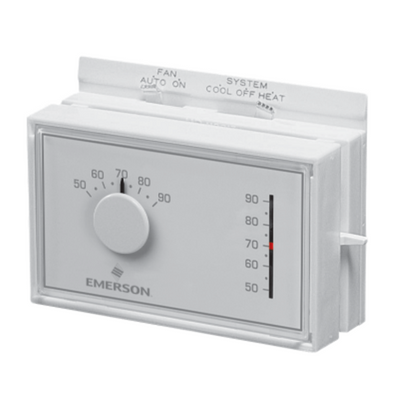

1F56N-444 | Standard Mechanical Thermostat | Conventional Single Stage | WHITE-RODGERS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1F56N-444

Jump to: Documents Overview Specifications Reviews

Documents and manuals

WHITE-RODGERS 1F56N-444 Documents

Installation Instructions More Info

Overview

Details for 1F56N-444

Accurate Temperature Control: WHITE-RODGERS 1F56N-444 Thermostat System SwitchThe WHITE-RODGERS 1F56N-444 Thermostat System Switch is designed for precise temperature control in residential and commercial applications. It features a user-friendly interface and advanced technology to ensure optimal comfort levels. Versatile Operation: This thermostat switch offers 24v/Millivolt operation, making it compatible with various heating and cooling systems. Whether you have a 2-wire or 3-wire system, this switch can be easily integrated. Multi-Function Controls: The 1F56N-444 provides a comprehensive range of control options, including heat, off, cool, fan, and auto settings. This versatility allows you to adjust the temperature to your desired comfort level with ease. Easy Installation: With its horizontal mount design, this thermostat switch can be seamlessly installed in any room. The included mounting hardware and clear instructions ensure a hassle-free setup process. Mercury-Free Design: As part of our commitment to sustainability, this thermostat system switch is mercury-free, making it environmentally friendly and safe for your home or business.Our HVAC supply store: The Trusted Choice for Industrial Engineers and Maintenance ProfessionalsWe offer the best prices and fast shipping for your products!

Mercury-free replacement for White-Rodgers and competitive models installed over the past 50 years.

Mercury free snap-action contacts with dust cover
Horizontal model
Built in bimetal thermometer
Same footprint since the introduction of the series saves time and aggravation, so wall marks are not a problem and no cover-up wallplate is necessary
24 volt, 750 mV and 3 - wire zone options

Specifications

Voltage: mV to 30 Vac 50/60 Hz
Stages Heat/Cool: Single Stage - 1H/1C, Conventional or Heat Pump No Aux
Style: Horizontal
Typical Applications: Gas/Oil/Electric
3-Wire Zone Valve Connection: Yes
Millivolt Compatible: Yes
Heat Pump (No Auxiliary Heat): Yes
Electric Heat Strip: Yes
Accessories: Includes Wallplate cool only or 3-wire zone (no system switch); Switched subbase Heat-Off-Cool & Fan Auto-On
Electric Heat Fan Control (Systems that Require (G terminal) on Call for Heat): Yes
U.S. Only or Canadian Only Model: U.S. only
Control Range: 50 to 90°F
Terminals: RC, RH, W, Y, O, B, G, A
Overall Dimensions: 2.75”H X 4.5”W X 1.50”D
Heat Anticipator: Adjustable from 0.15 to 1.2 Amps
Control Range: 50 to 90?F
Terminals: RC, RH, W, Y, O, B, G, A
Dimensions: 2.75?H X 4.5?W X 1.50?D
Heat Anticipator: Adjustable from 0.15 to 1.2 Amps
