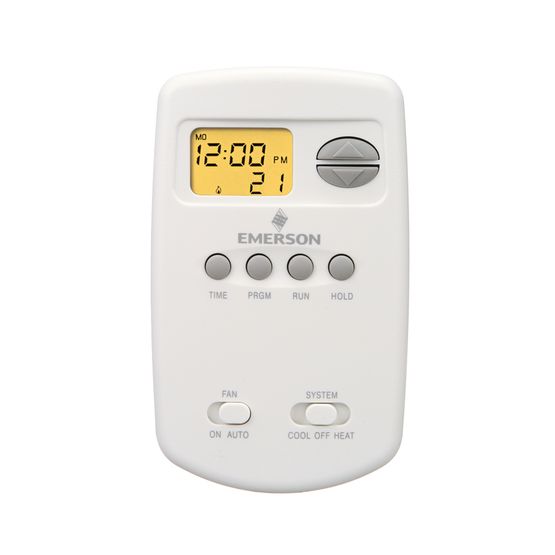

1E78-151 | 24v Or Millivolt Single Stage 5/2 Day Digital Programmable Thermostat Vertical M | WHITE-RODGERS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1E78-151

Jump to: Documents Overview Specifications Reviews

Documents and manuals

WHITE-RODGERS 1E78-151 Documents

Installation Instructions More Info

Overview

Details for 1E78-151

The White-Rodgers 1E78-151 Programmable Thermostat offers precise temperature control for both residential and commercial applications. Its versatile design allows for 24-volt or millivolt operation, making it compatible with a wide range of heating systems. Featuring a clear, backlit display, it provides easy-to-read temperature readings and user-friendly navigation. Its customizable programming capabilities enable the creation of up to four daily temperature settings, ensuring optimal comfort at different times of the day. With its 5/2 day schedule, you can program different temperatures for weekdays and weekends, saving energy during unoccupied hours. The vertical mount design makes it easy to install, and its compact size allows for placement in virtually any location.

The perfect upgrade from mechanical thermostat available as a Single Stage offering economy and value with proven reliability.

Vertical model
Programmable model
Selectable Celsius or Fahrenheit temperature display
Fossil fuel or electric heat compatible
Electronic accuracy
Temperature accuracy for customers on a budget

Specifications

Program Options: Programmable - 5+2 Day
Program Periods Per Day Options: 4
Stages: Single Stage - 1H/1C
Style: Vertical
Typical Applications: Gas/Oil/Electric
Terminals: RC, RH, W, Y, O, B, G
3-Wire Zone Valve Connections: No
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: No
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery
Auto Changeover (Heat/Cool): No
Fan Option: Auto, On
Filter Change Reminder: No
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: No
Set-Point Temperature Limits: No
Display Type: 1.2 square in.
Backlight: Key Press
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
