1E65-144 | 120/240vac SPST Heat Only Line Voltage 2 Wire Digital Non Programmable Thermosta | WHITE-RODGERS

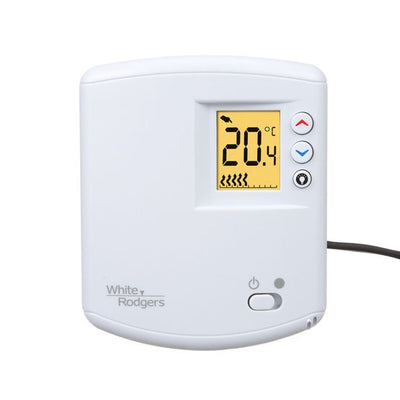

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1E65-144

Jump to: Documents Overview Specifications Reviews

Documents and manuals

WHITE-RODGERS 1E65-144 Documents

Installation Instructions More Info

Overview

Details for 1E65-144

The 1E65-144 is a 120/240vac SPST Heat Only Line Voltage 2 Wire Digital Non Programmable Thermostat with Lighted Display 40-90F from WHITE-RODGERS. This thermostat is designed for use with electric heat only systems. It features a lighted display for easy viewing, and a digital interface that makes it easy to set and adjust the temperature. The 1E65-144 is also compatible with a variety of heating systems, making it a versatile choice for any home or business.

Line Voltage Digital Thermostats for Baseboard and Resistance Heat.

Non backlit, LCD with great contrast for enhanced visibility
100% silent operation with optional proportional control feature
Precise electric heat temperature control
Digital non-programmable
Celsius or Fahrenheit

Specifications

Programmable: No
Range: 45 to 90°F (7 to 32°C)
Differential: 1.0 deg. F
Switch Action: Open on Rise
Amperage: 2.0 to 16.7 (250 to 2000W) Resistive at 120 Vac
Amperage: 2.0A to 16.7A (500 to 4000W) Resistive at 240 Vac
Typical Applications: Baseboard Electric Heat, Convectors, Fan-Forced Heaters Radiant Floor or Ceiling Heat
Electrical Rating: 120/240 Vac, 50/60 Hz
Resistive Rating: Minimum load 2.0 A (resistive only), 500 W @ 240 Vac, 250 W @ 120 Vac, Maximum load 16.7 A (resistive only), 4000 W @ 240 Vac, 2000 W @ 120 Vac
Maximum load: 16.7 A (resistive only), 4000 W @ 240 Vac, 2000 W @ 120 Vac
