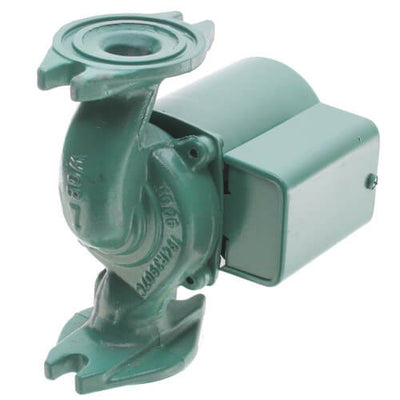

007-F5-7IFC | Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007 | TACO

TACO 120V Cartridge Circulator 1/25 HP Iron Body W/Inline Flow Check Valve [007-F5-7IFC] This TACO 120V Cartridge Circulator features a 1/25 HP iron body with an inline flow check valve, making it an ideal choice for industrial applications. Its compact design and corrosion-resistant construction ensure durable performance in demanding environments. Engineered with a voltage range of 120V, this circulator offers operational flexibility for various electrical systems. Key Features: * 120V operation * 1/25 HP iron body * Inline flow check valve * Compact design * Durable construction Applications: * Industrial circulation systems * Chemical processing * Manufacturing facilities * Water treatment plants Shop our HVAC supply store for the best prices and fast shipping on your industrial products!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators

Taco's 007-F5-7IFC Model is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. Its rugged cast iron construction makes the circulating pump a versatile and reliable unit in your HVAC system. Since the cartridge contains all of the interacting parts, circulator and IFC maintenance is made easy and you don't have to replace the entire unit. Its quiet, effective operation, unmatched reliability, unique design and functionality makes the Taco 007-F5-7IFC cartridge circulator pump among the most popular hydronic circulator pumps available in the market.

The Taco 007-F5-7IFC is engineered to simplify piping, reduce installation costs and optimize system performance when zoning with Taco 00 circulators. Its main function is to protect against reverse and gravity flow. A low pressure drop caused by the spring-loaded IFC increases flow performance vs. traditional in-line flow checks. Applications include: hydronic heating/cooling, hydro-air fan coils, radiant heating, and indirect water heaters.

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 0010-025RP
valve Assembly Trans/Relay: 006-047RP

Features:

• Integral Flow Check (IFC)--Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service, and Improved Performance vs. In-Line Flow Checks
• Unique Replaceable Cartridge Design-Field Serviceable
• Unmatched Reliability-Maintenance Free
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Standard High Capacity Output-Compact Design
• Self Lubricating, No Mechanical Seal
• Cast iron Construction with Flanged Connections
