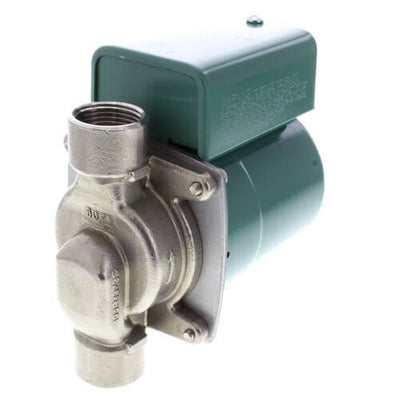

3/4" FNPT Lead Free Stainless Steel Cartridge Circulator 1/40 HP (006-ST4) The TACO 006-ST4 is a 3/4" FNPT lead-free stainless steel cartridge circulator with a 1/40 HP motor. It is designed to replace the 006-BT4 model. This cartridge circulator is ideal for use in a variety of applications, including: * Domestic hot water recirculation * Space heating * Radiant floor heating * Solar heating * Geothermal heating The 006-ST4 features a stainless steel construction for durability and corrosion resistance. It also has a built-in check valve to prevent backflow. The motor is thermally protected to prevent overheating. Technical Specifications: * Size: 3/4" FNPT * Material: Stainless steel * Motor: 1/40 HP * Voltage: 115V * Amps: 1.2A * Max flow rate: 5 GPM * Max head: 12 feet Benefits: * Lead-free construction * Stainless steel construction for durability and corrosion resistance * Built-in check valve to prevent backflow * Thermally protected motor * Compact design Order your TACO 006-ST4 3/4" FNPT Lead Free Stainless Steel Cartridge Circulator 1/40 HP today! Our HVAC supply store is your top source for TACO products. We offer the best prices and fast shipping on all orders. Shop now!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-9 Feet
Minimum Fluid Temperature: 40F (4C)
Maximum Fluid Temperature: 220F (104C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1 , 1-1/4", 1-1/2" CI Flanged or 1/2 Swt, 3/4" Swt, 3/4 NPT, or Union

The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Direct Drive-Low Power Consumption
Unique Replaceable Cartridge Design-Field Serviceable
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Cast Iron, Flanged or Bronze Construction with Sweat, Threaded or Union Connections

Typical Applications
Hydronic heating
Domestic hot water recirculation
Hydro-air heating/cooling
Heat recovery units
Water source heat pumps
Drain down open loop solar systems
Potable water applications

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
