Brand: Midland Metal Mfg.SKU: 949164

List Price
~~$127.52~~

Web Price:

$57.99

Order Amount

Discount

Unit Price

$250-$500

$57.42

$501-$1,000

$55.68

$1,001-$2,500

$53.94

$2,501+

10%

$52.20

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

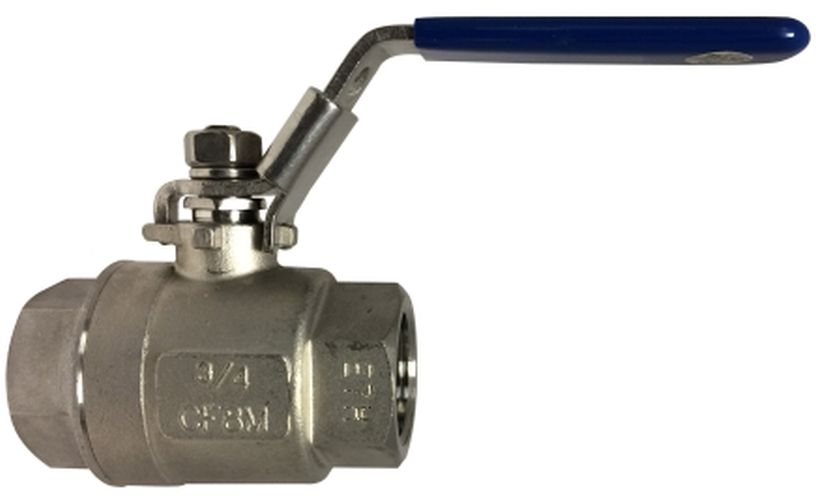

949164 | 3/4 2PCS 316SS FULL PORT BALLVLV, Valves, Stainless Steel Ball Valves, 1000 PSI Two Piece Full Port Ball Valve | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 949164

3/4 2PCS 316SS FULL PORT BALLVLV, Valves, Stainless Steel Ball Valves, 1000 PSI Two Piece Full Port Ball Valve

Item Number	949164
Brand	Midland Metal Mfg.
Additional Information	125 psi Steam Pressure; 1500 psi Hydrostatic Test Pressure; 3/4-14 Thread Size; 0.970 lb Weight
Ball Material	316 Stainless Steel
Body Material	316 Stainless Steel
Category	Valves
Connection Type	FIP
Description	1000 PSI Two Piece Full Port Ball Valve
Dimensions	2.68 in L
Domestic/Import	Import
Handle Material	AISI 304 Stainless Steel
Inlet to Outlet Length	2.68 in
Material Standard	ASTM A351 CF8M
Material	Stainless Steel
Nominal Size	3/4 in
Operator Type	Locking Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	1000 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Stainless Steel Ball Valves
Shape	Valve
Stem Material	AISI 304 Stainless Steel
Temperature Rating	-60 to 450 deg F
Top to Inlet Center	2.4 in
Trim Material	AISI 304 Stainless Steel Nut and Washer; Gland Nut
