948177 | 2 MXF FULL PORT BALL VALVE UL APPROVED, Valves, Male x Female Ball Valves, MIP X FIP 600# Full Port Ball Valve | Midland Metal Mfg.

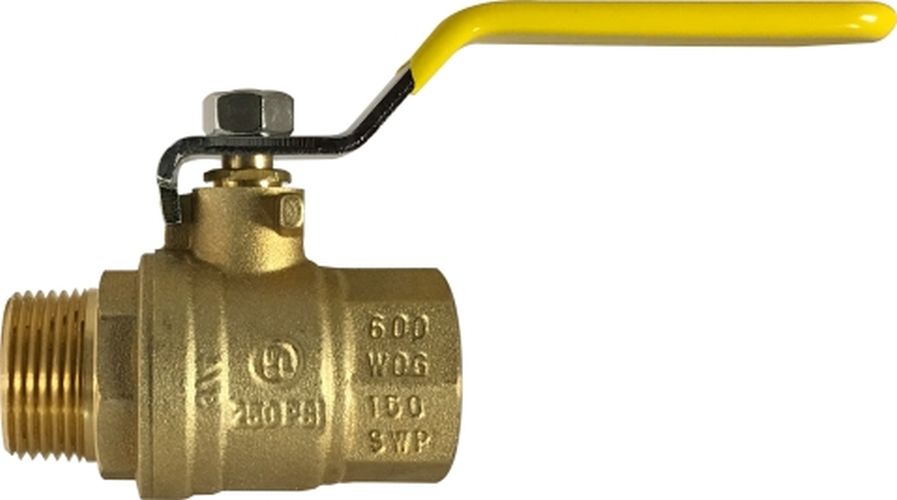

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 948177

2 MXF FULL PORT BALL VALVE UL APPROVED, Valves, Male x Female Ball Valves, MIP X FIP 600# Full Port Ball Valve

Item Number	948177
Brand	Midland Metal Mfg.
Additional Information	2-11-1/2 Thread Size; 3.480 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	MIP X FIP 600# Full Port Ball Valve
Dimensions	4.496 in L
Domestic/Import	Import
Handle Material	Carbon Steel
Inlet to Outlet Length	4.496 in
Lead-Free/Contains Lead	Contains Lead
Material	Brass
Nominal Size	2 in
Operator Type	1/4 Turn Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	3.681 in
Trim Material	Brass Impacted Nut/Steel Stem Nut
