Brand: Midland Metal Mfg.SKU: 948172L

List Price
~~$35.49~~

Web Price:

$16.99

Order Amount

Discount

Unit Price

$250-$500

$16.83

$501-$1,000

$16.32

$1,001-$2,500

$15.81

$2,501+

10%

$15.30

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

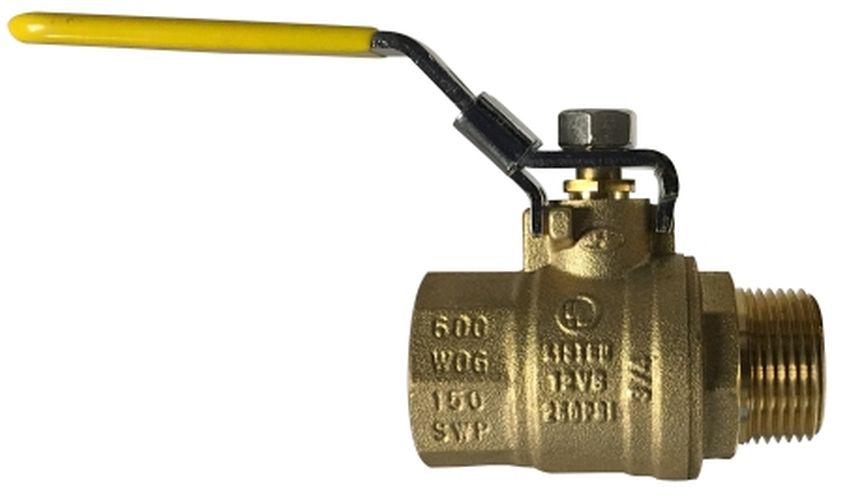

948172L | 1/2 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 948172L

1/2 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve

Item Number	948172L
Brand	Midland Metal Mfg.
Additional Information	1/2-14 Thread Size; 0.480 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	Male x Female Locking Handle ball Valve
Dimensions	2.343 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	2.343 in
Lead-Free/Contains Lead	Contains Lead
Material	Forged Brass
Nominal Size	1/2 in
Operator Type	Locking Handle
Packing Material	PTFE
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Male x female
Stem Material	Brass
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	1.941 in
Trim Material	Brass Impacted Nut/Steel Stem Nut
