Brand: Midland Metal Mfg.SKU: 948170L

List Price
~~$31.16~~

Web Price:

$14.99

Order Amount

Discount

Unit Price

$250-$500

$14.85

$501-$1,000

$14.40

$1,001-$2,500

$13.95

$2,501+

10%

$13.50

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

948170L | 1/4 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve | Midland Metal Mfg.

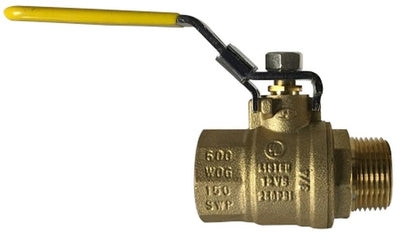

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 948170L

1/4 LOCKING HNDL MALE X FEMALE BALLVALVE, Valves, Male x Female Ball Valves, Male x Female Locking Handle ball Valve

Item Number	948170L
Brand	Midland Metal Mfg.
Additional Information	1/4-18 Thread Size; 0.320 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	Male x Female Locking Handle ball Valve
Dimensions	2.016 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	2.016 in
Lead-Free/Contains Lead	Contains Lead
Material	Forged Brass
Nominal Size	1/4 in
Operator Type	Locking Handle
Packing Material	PTFE
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Male x female
Stem Material	Brass
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	1.732 in
Trim Material	Brass Impacted Nut/Steel Stem Nut
