Get your Special Pricing!

Brand: Midland Metal Mfg.SKU: 948107

List Price
~~$192.21~~

Web Price:

$85.99

Order Amount

Discount

Unit Price

$250-$500

$85.14

$501-$1,000

$82.56

$1,001-$2,500

$79.98

$2,501+

10%

$77.40

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

948107 | 1 1/2 CSA MXF BALL VALVE, Valves, Male x Female Ball Valves, MIP x FIP Italian Ball Valve | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 948107

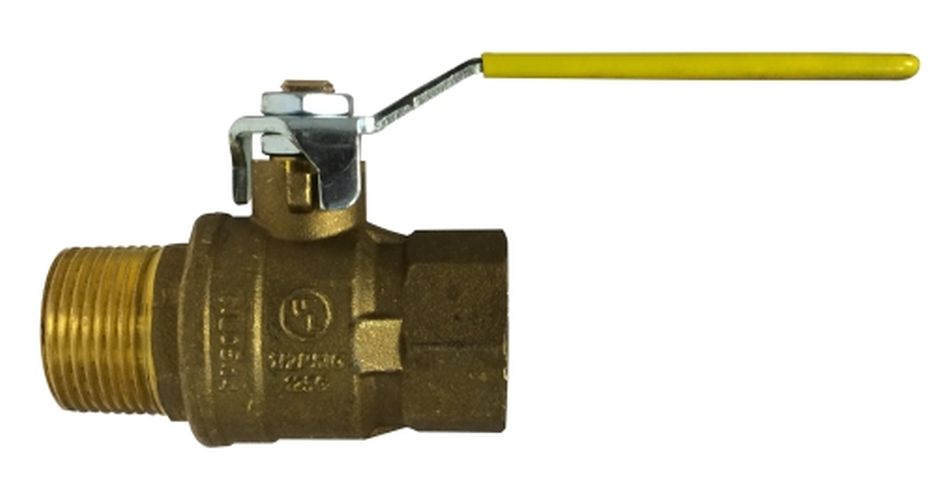

1 1/2 CSA MXF BALL VALVE, Valves, Male x Female Ball Valves, MIP x FIP Italian Ball Valve

Item Number	948107
Brand	Midland Metal Mfg.
Additional Information	1-1/2-11-1/2 Thread Size; 2.720 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	MIP x FIP Italian Ball Valve
Dimensions	4.2 in L
Domestic/Import	Import
Handle Material	Carbon Steel
Inlet to Outlet Length	4.2 in
Lead-Free/Contains Lead	Contains Lead
Material Standard	CW617N; UN 5771
Material	Brass
Nominal Size	1-1/2 in
Operator Type	1/4 Turn Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-20 to 248 deg F
Top to Inlet Center	2.98 in
Trim Material	Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
