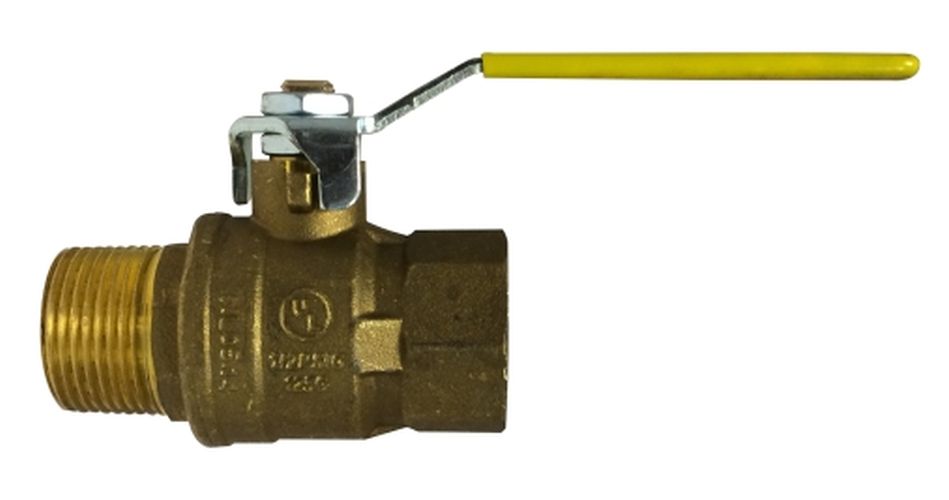

948103 | 1/2 CSA MXF BALL VALVE | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 948103

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Midland Metal Mfg. 948103 Documents

Datasheet More Info

Overview

Details for 948103

1/2 CSA MXF BALL VALVE, Valves, Male x Female Ball Valves, MIP x FIP Italian Ball Valve

Specifications

Item Number	948103
Brand	Midland Metal Mfg.
Additional Information	1/2-14 Thread Size; 0.500 lb Weight
Ball Material	Brass
Body Material	Brass
Category	Valves
Connection Type	MPT x FPT
Description	MIP x FIP Italian Ball Valve
Dimensions	2.54 in L
Domestic/Import	Import
Handle Material	Carbon Steel
Inlet to Outlet Length	2.54 in
Lead-Free/Contains Lead	Contains Lead
Material Standard	CW617N; UN 5771
Material	Brass
Nominal Size	1/2 in
Operator Type	1/4 Turn Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Male x Female Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-20 to 248 deg F
Top to Inlet Center	1.57 in
Trim Material	Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
