947125 | 1 FIP X 3/4 MIP 3 WAY NON-VENT BRASS BV, Valves, 2017 Valves, 3- Way Wye Vented and Unvented Ball Valve | Midland Metal Mfg.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 947125
Overview
Details for 947125

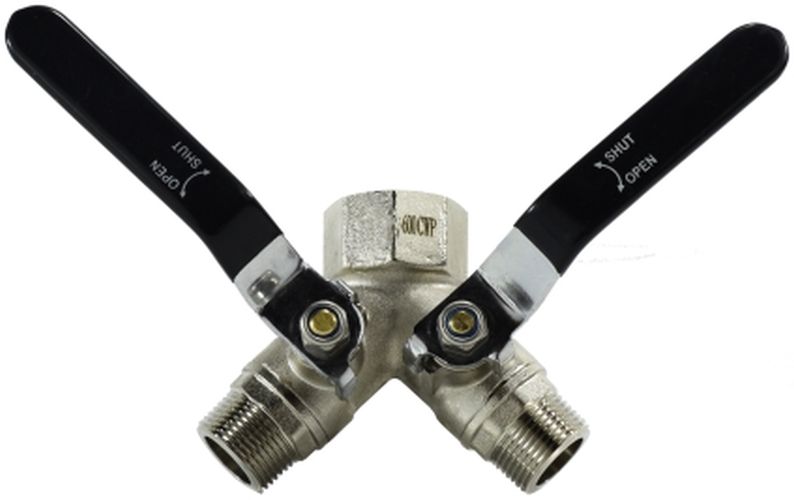

1 FIP X 3/4 MIP 3 WAY NON-VENT BRASS BV, Valves, 2017 Valves, 3- Way Wye Vented and Unvented Ball Valve
Specifications
| Item Number | 947125 |
| Brand | Midland Metal Mfg. |
| Additional Information | 150 psi at 365 deg F WSP; 1-11-1/2 x 3/4-14 Thread Size; 29 inHg Vacuum Rated; 1.530 lb Weight |
| Ball Material | Brass |
| Body Material | Brass |
| Category | Valves |
| Connection Type | FIP x MIP |
| Description | 3- Way Wye Vented and Unvented Ball Valve |
| Domestic/Import | Import |
| Finish | Nickel-Plated |
| Handle Material | Stainless Steel |
| Material | Brass |
| Nominal Size | 1 x 3/4 in |
| Number of Ports/Ways | 3-Way |
| Operator Type | Lever Handle |
| Port Type | Full |
| Pressure Rating | 600 psi |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Section | 2017 Valves |
| Shape | Wye shaped with ball valve on |
| Stem Material | Brass |
| Temperature Rating | -40 to 365 deg F |
| Top to Inlet Center | 2.05 in |
| Trim Material | FKM O-Ring |
