942208 | 2 1/2 FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Italian Full Port Ball Valves | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 942208

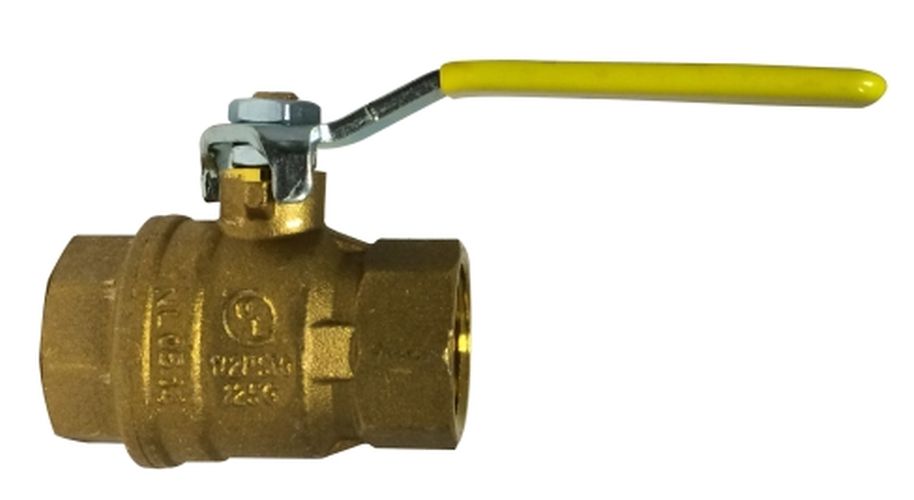

2 1/2 FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Italian Full Port Ball Valves

Item Number	942208
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 2-1/2-8 Thread Size; 7.870 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FPT x FPT
Description	Italian Full Port Ball Valves
Dimensions	5.8 in L
Domestic/Import	Import
Handle Material	Plated Steel
Inlet to Outlet Length	5.8 in
Material	Brass
Nominal Size	2-1/2 in
Operator Type	Reversible Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	TFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	20 to 248 deg F
Top to Inlet Center	4.98 in
Trim Material	Steel Nut/NBR 80 O-Ring
