Brand: Midland Metal Mfg.SKU: 941158NP

List Price
~~$259.70~~

Web Price:

$118.99

Order Amount

Discount

Unit Price

$250-$500

$117.81

$501-$1,000

$114.24

$1,001-$2,500

$110.67

$2,501+

10%

$107.10

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

941158NP | 2 NICKEL PLATED FULL PORT BALL VALVE, Valves, 2017 Valves, Nickel Plated Ball Valve | Midland Metal Mfg.

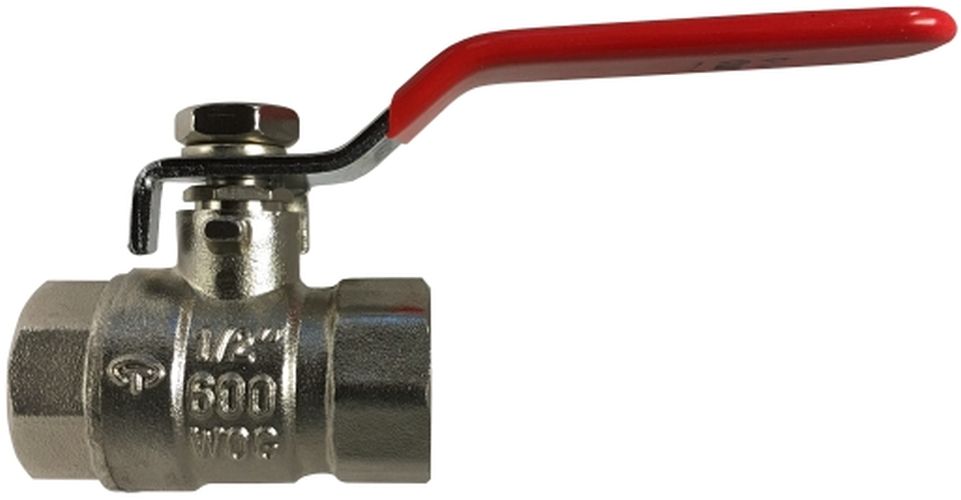

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 941158NP

2 NICKEL PLATED FULL PORT BALL VALVE, Valves, 2017 Valves, Nickel Plated Ball Valve

Item Number	941158NP
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Service Pressure; 2-11-1/2 Thread Size; 29.92 inHg Vacuum Services; 3.050 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FIP x FIP
Description	Nickel Plated Ball Valve
Dimensions	7.638 in OAL x 4.638 in H
Domestic/Import	Import
Finish	Nickel-Plated
Handle Material	Steel
Inlet to Outlet Length	4.06 in
Material	Nickel Plated Brass
Nominal Size	2 in
Operator Type	Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seat Material	PTFE
Section	2017 Valves
Shape	Ball Valve
Stem Material	Nickel-Plated Brass
Temperature Rating	-40 to 365 deg F
Top to Inlet Center	3.01 in
Trim Material	Plated Steel Handle Nut and Lock Washer
