941153NP | 1/2 NICKEL PLATED FULL PORT BALL VALVE, Valves, 2017 Valves, Nickel Plated Ball Valve | Midland Metal Mfg.

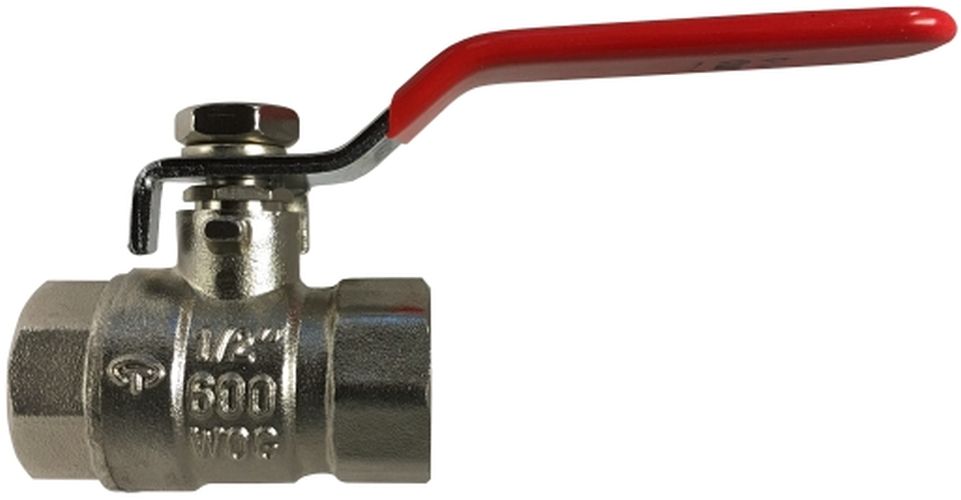

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 941153NP

1/2 NICKEL PLATED FULL PORT BALL VALVE, Valves, 2017 Valves, Nickel Plated Ball Valve

Item Number	941153NP
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Service Pressure; 1/2-14 Thread Size; 29.92 inHg Vacuum Services; 0.350 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FIP x FIP
Description	Nickel Plated Ball Valve
Dimensions	4.291 in OAL x 2.276 in H
Domestic/Import	Import
Finish	Nickel-Plated
Handle Material	Steel
Inlet to Outlet Length	1.89 in
Material	Nickel Plated Brass
Nominal Size	1/2 in
Operator Type	Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seat Material	PTFE
Section	2017 Valves
Shape	Ball Valve
Stem Material	Nickel-Plated Brass
Temperature Rating	-40 to 365 deg F
Top to Inlet Center	1.73 in
Trim Material	Plated Steel Handle Nut and Lock Washer
