Get your Special Pricing!

Brand: Midland Metal Mfg.SKU: 941128NP

List Price
~~$288.60~~

Web Price:

$131.99

Order Amount

Discount

Unit Price

$250-$500

$130.68

$501-$1,000

$126.72

$1,001-$2,500

$122.76

$2,501+

10%

$118.80

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

941128NP | 2 NP UL FM CSA SS TRIM FP BV LKG HDLE, Valves, 2017 Valves, Workhorse Ball Valve Has Everything | Midland Metal Mfg.

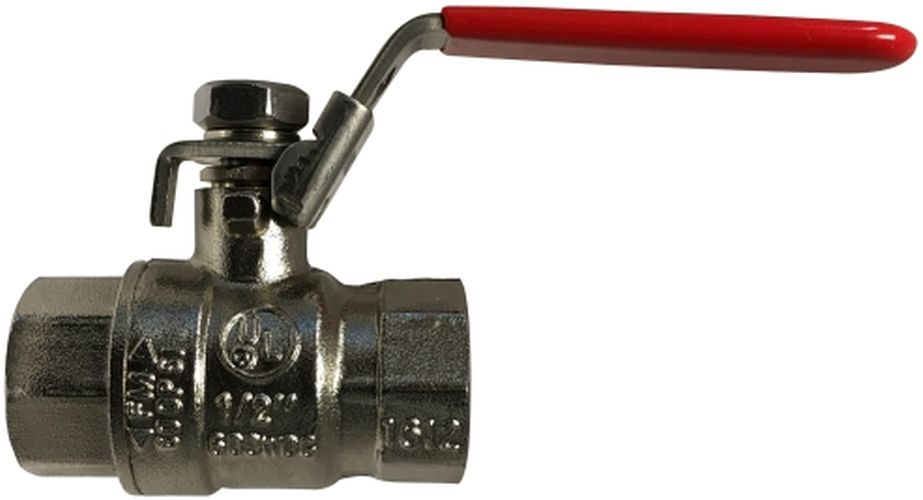

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 941128NP

2 NP UL FM CSA SS TRIM FP BV LKG HDLE, Valves, 2017 Valves, Workhorse Ball Valve Has Everything

Item Number	941128NP
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Service Pressure; 2-11-1/2 Thread Size; 29 inHg Vacuum Services; 3.480 lb Weight
Ball Material	Stainless Steel
Body Material	Forged Brass
Category	Valves
Connection Type	FPT x FPT
Description	Workhorse Ball Valve Has Everything
Dimensions	4.33 in L
Domestic/Import	Import
Finish	Nickel-Plated
Flow Coefficient (Cv)	200.35 Cv
Handle Material	Stainless Steel
Inlet to Outlet Length	4.33 in
Material	N/P Brass Body
Nominal Size	2 in
Operator Type	Locking Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seat Material	PTFE
Section	2017 Valves
Shape	Full Port
Stem Material	Stainless Steel
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	3.48 in
Trim Material	Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring
