Brand: Midland Metal Mfg.SKU: 940464

List Price
~~$125.46~~

Web Price:

$57.99

Order Amount

Discount

Unit Price

$250-$500

$57.42

$501-$1,000

$55.68

$1,001-$2,500

$53.94

$2,501+

10%

$52.20

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

940464 | 1/4 3 WAY BALL VALVE, Valves, 3 Way Ball Valves, Side Outlet 3 Way Ball Valve | Midland Metal Mfg.

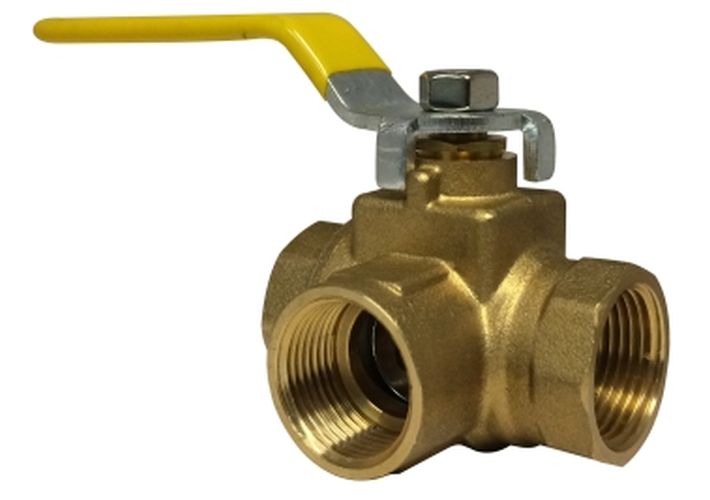

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 940464

1/4 3 WAY BALL VALVE, Valves, 3 Way Ball Valves, Side Outlet 3 Way Ball Valve

Item Number	940464
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Pressure; 1/4-18 Thread Size; 0.610 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FPT
Description	Side Outlet 3 Way Ball Valve
Dimensions	3.58 in L
Domestic/Import	Import
Handle Material	Steel
Material	Brass
Nominal Size	1/4 in
Number of Ports/Ways	3-Way
Operator Type	90 deg Rotation Lever Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	3 Way Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	0 to 230 deg F
Top to Inlet Center	1.73 in
Trim Material	Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
