Get your Special Pricing!

Brand: Midland Metal Mfg.SKU: 940171

List Price
~~$21.82~~

Web Price:

$9.69

Order Amount

Discount

Unit Price

$250-$500

$9.60

$501-$1,000

$9.31

$1,001-$2,500

$9.02

$2,501+

10%

$8.73

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

940171 | 1/4IN 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM | Midland Metal Mfg.

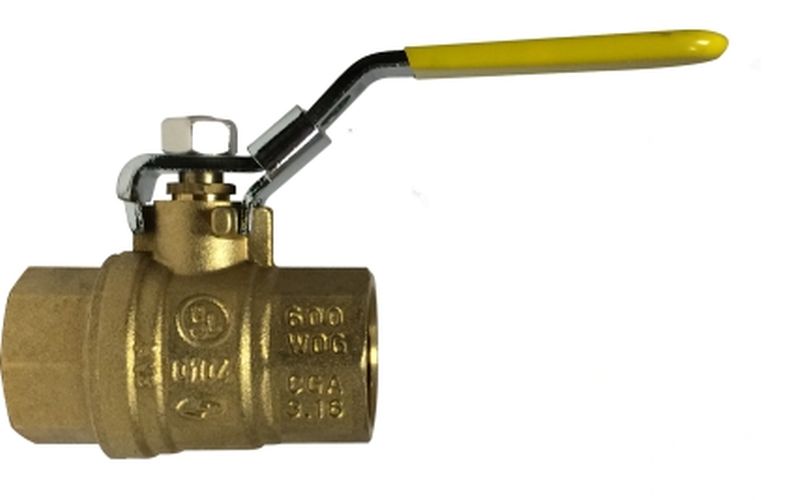

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 940171

1/4IN 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM

Anderson alternative: 40024-04

Item Number	940171
Brand	Midland Metal Mfg.
Additional Information	150 psi WSP Saturated Steam Pressure; 1/4-18 Thread Size; 0.340 lb Weight
Ball Material	Chromium-Plated Brass
Body Material	Forged Brass
Category	Valves
Connection Type	FNPT x FNPT
Description	Full Port Ball Valves 600 WOG CSA UL FM
Dimensions	1-3/4 in L
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	1-3/4 in
Material	Brass
Nominal Size	1/4 in
Operator Type	Handle
Port Type	Full
Pressure Rating	600 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Full Port Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	-22 to 302 deg F
Top to Inlet Center	1.92 in
Trim Material	Brass Gland/Steel Nut and Spring Inseat
