Get your Special Pricing!

Brand: Midland Metal Mfg.SKU: 6815NWO88

List Price
~~$38.33~~

Web Price:

$16.99

Order Amount

Discount

Unit Price

$250-$500

$16.83

$501-$1,000

$16.32

$1,001-$2,500

$15.81

$2,501+

10%

$15.30

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

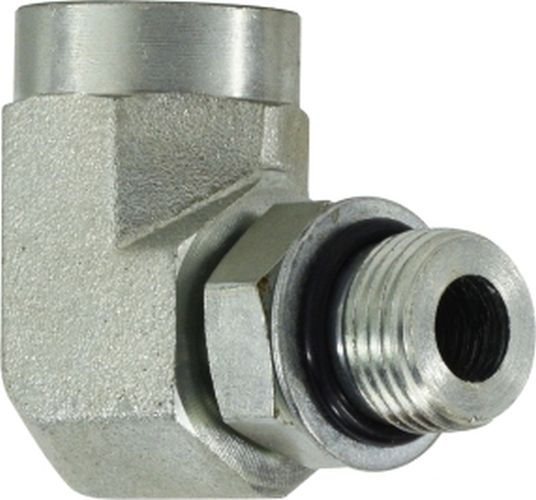

6815NWO88 | 3/4-16 (F ORB X M ORB 90 EL), Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 6815NWO88

3/4-16 (F ORB X M ORB 90 EL), Hydraulic, Steel SAE O-Ring Fittings, Female O-Ring to Male O-Ring Elbow

Item Number	6815NWO88
Brand	Midland Metal Mfg.
Additional Information	08 Dash Number; 1/2 in Tube
Category	Hydraulic
Connection Size 1	3/4 in
Connection Size 2	3/4 in
Connection Type 1	Female ORB
Connection Type 2	Male ORB
Connection Type	Female ORB\|Male ORB
Description	Female O-Ring to Male O-Ring Elbow
Fitting Type	90 deg Elbow
Material Construction	Steel
Material	Steel
Maximum Operating Pressure	3600 psi
Operating Temperature	375 deg F
Section	Steel SAE O-Ring Fittings
Shape	90 degree elbow
Thread Size	3/4-16
