Brand: Midland Metal Mfg.SKU: 46934L

List Price
~~$23.53~~

Web Price:

$3.39

Order Amount

Discount

Unit Price

$250-$500

$3.36

$501-$1,000

$3.26

$1,001-$2,500

$3.16

$2,501+

10%

$3.06

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

46934L | 1/8 FXF MINI BV LEVER HDLE W/FKM SEALS, Brass Fittings, Miniature Ball Valves, Female x Female Economy Mini Ball Valve | Midland Metal Mfg.

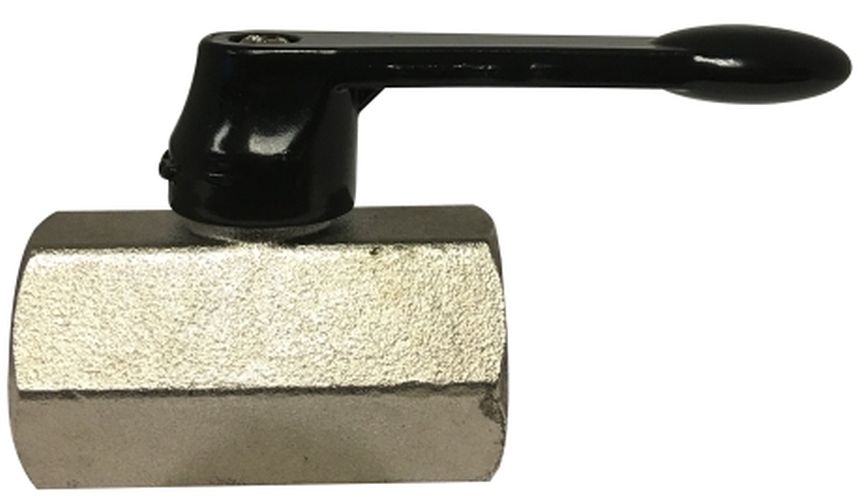

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 46934L

1/8 FXF MINI BV LEVER HDLE W/FKM SEALS, Brass Fittings, Miniature Ball Valves, Female x Female Economy Mini Ball Valve

Item Number	46934L
Brand	Midland Metal Mfg.
Additional Information	355 psi at 212 deg F; 142 psi at 356 deg F Pressure; 1/8-27 Thread Size; 0.210 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Brass Fittings
Connection Type	FNPT x FNPT
Description	Female x Female Economy Mini Ball Valve
Dimensions	1.57 in L x 1.5 in H
Domestic/Import	Import
Finish	Chrome-Plated
Handle Material	NBR 80
Inlet to Outlet Length	1.57 in
Material	Brass
Nominal Size	1/8 in
Operator Type	Lever Handle
Pressure Rating	450 psi
Seal Material	FKM
Seat Material	PTFE
Section	Miniature Ball Valves
Shape	Valve
Stem Material	Brass
Temperature Rating	32 to 176 deg F
Trim Material	Brass Ring Unit/NBR 80 O-Ring
