18321 | 1/4 X 1/8 (COMP X FIP BRANCH TEE), Brass Fittings, Compression, Female Branch Forged Tee | Midland Metal Mfg.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 18321

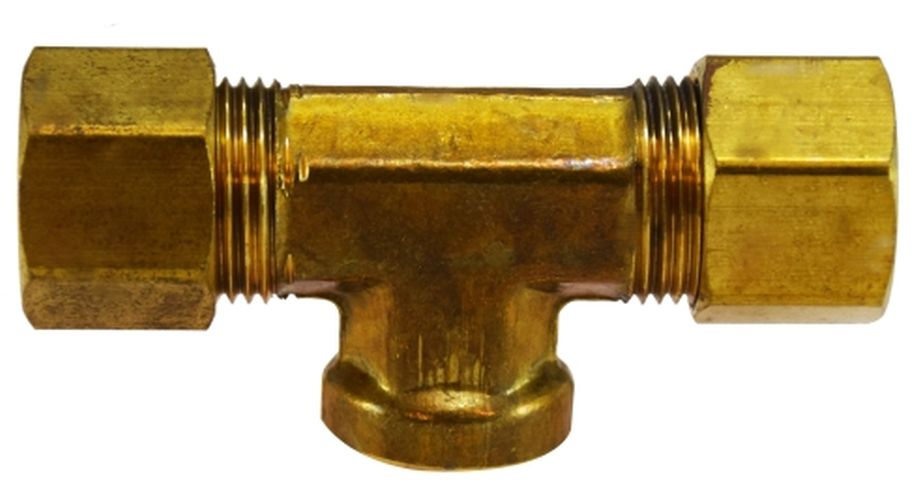

1/4 X 1/8 (COMP X FIP BRANCH TEE), Brass Fittings, Compression, Female Branch Forged Tee

Anderson alternative: 00078-0402

Item Number	18321
Brand	Midland Metal Mfg.
Additional Information	0.45 in Body Size; 0.78 x 0.75 in Center to End; 0.100 lb Weight
Category	Brass Fittings
Connection Size 1	1/4 in
Connection Size 2	1/4 in
Connection Size 3	1/8 in
Connection Type 1	Compression
Connection Type 2	Compression
Connection Type 3	FNPTF
Connection Type	Compression\|Compression\|FNPT
Description	Female Branch Forged Tee
Fitting Type	Tee
For Use With	Copper; Aluminum and Thermoplastic Tubing
Material Construction	Forged Brass
Material	Brass
Pressure Rating	300 psi
Section	Compression
Shape	Tee
Temperature Rating	-65 to 250 deg F
Thread Size	7/16-24 x 1/8-27
