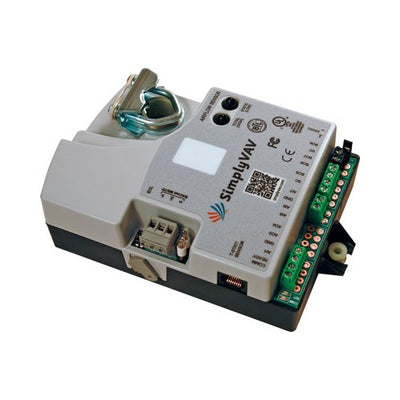

BAC-8001 | BACnet ASC: SimplyVAV, Cooling / Heating, 40 in-lbs, 90 sec. | KMC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BAC-8001
Documents and manuals
KMC BAC-8001 Documents
SimplyVAV engineering submittal sheetsKMC Product Overview BrochureTECHNICAL BULLETIN. EIA-485 Network Wire Recommendations Technical BulletinDATA SHEET SimplyVAV BAC-8000 series controllers Rev IAPPLICATION AND INSTALLATION GUIDE SimplyVAV Controllers Rev LWHITE PAPER. VAV Zoning Made Easy More Info
Overview
Details for BAC-8001
BACnet ASC: SimplyVAV, Cooling / Heating, 40 in-lbs, 90 sec.
The SimplyVAV series of controllers are an easy and unique approach to operating a wide variety of VAV terminal units. The integrated actuators, internal airflow sensors, and wide variety of application programs make these BACnet Application Specific controllers ideal for either new or retrofit installations.
Model BAC-8001 is supplied with inputs, outputs, and sequences of operation for the following functions.
- Single duct heating and cooling VAV
- Automatic heating/cooling changeover
- Occupancy setback—requires STE-8201
- System diagnostic indicators
- Airflow balancing
- A 90-second actuator
For control of the RTU, HPU, or other unitary equipment in zoning applications, see the BAC-120063CW-ZEC FlexStat Zoning Equipment Controller.
Specifications
- Analog Inputs
3
- Application
VAV
- BACnet Profile
Application Specific Controller
- Brand
KMC Controls
- Connectivity
MS/TP
- Mounting
V-Bolt/ Screws
- Timing (sec)
90
- VAV Control
Pressure Independent
- VAV Fan
None
- VAV Type
Single Duct
