5ER13001 | ER 25 COLLET FIXTURE ASSEMBLY, 130MM RND | Jergens

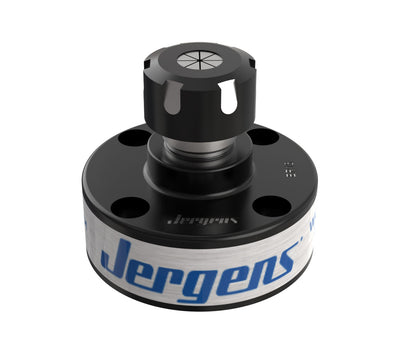

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 5ER13001
Documents and manuals
Jergens 5ER13001 Documents
Overview
Details for 5ER13001
The ER 25 Collet Fixture Assembly (5ER13001) from Jergens is a high-precision fixture designed for holding and aligning workpieces during machining and inspection processes. Crafted with a 130mm round base, it offers exceptional rigidity and stability for precise collet clamping. Its ER 25 collets ensure accurate centering and gripping of round workpieces ranging from 0.002" to 0.500" in diameter.
Constructed from durable materials, the assembly withstands heavy cutting forces and maintains its precision over extended use. Its compact design allows for easy integration into various machining setups. The ER 25 Collet Fixture Assembly is an essential tool for industrial engineers and maintenance professionals requiring high-accuracy and reliable workpiece holding solutions.
Shop at our HVAC supply store for the best prices and fast shipping on your industrial supplies!
Specifications
Item Number | 5ER13001 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | 5-Axis Workholding |
SubCategory 3 | Fixture-Pro |
SubCategory 4 | 5-Axis ER Collet Fixtures |
Type | 5 Axis Er Collet Fixtures |
