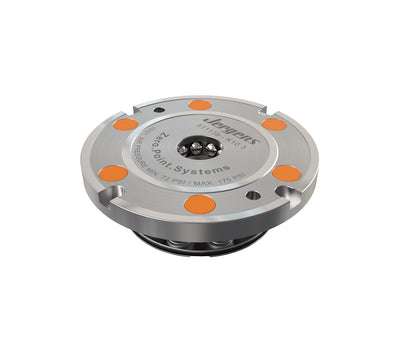

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 511139
Documents and manuals
Jergens 511139 Documents
Overview
Details for 511139
Clamping Module K10.3, Indexing, LP (SKU: 511139)
Description:
The Jergens Clamping Module K10.3 is an indexing precision clamp designed for high-accuracy positioning and clamping applications. Its compact design and low-profile allow it to be integrated into tight spaces. This module features a single-acting piston with a lever-activated release mechanism for quick and effortless clamping operations.
Technical Specifications:
* Clamping force: 1,200 N
* Stroke: 10 mm
* Repeatability: ≤0.01 mm
* Accuracy: ≤0.02 mm
* Material: Steel body, hardened steel piston
* Pressure range: 4-10 bar
* Accessory compatibility: M10 bolts
Key Benefits:
* Precise clamping operations
* Compact design for space-saving installations
* Single-acting piston with lever release for ease of use
* Durable construction for demanding industrial environments
* Ideal for high-precision applications in aerospace, automotive, and medical industries
Applications:
* Fixture and workholding in machining operations
* Inspection and assembly processes
* Prototyping and testing
* Robotic cell automation
Shop now at our HVAC supply store for the best prices and fast shipping on your Jergens Clamping Module K10.3 (SKU: 511139)!
Specifications
Item Number | 511139 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Zero Point Mounting System |
SubCategory 4 | Installation Clamping Modules |
Type | Installation Clamping Modules K10 K20 With Indexing Low Pressure Pneumatic Unlocking |
