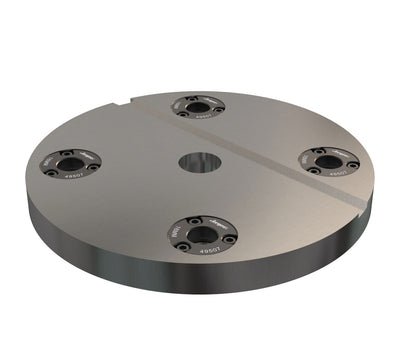

49109 | SUBPLATE, STEEL,12IN DIA X 1.0 | Jergens
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 49109
Documents and manuals
Jergens 49109 Documents
Overview
Details for 49109
Industrial-Grade Steel Subplate: Jergens 49109 for Precision Mounting
The Jergens 49109 subplate is engineered from high-quality steel, offering exceptional durability and rigidity for demanding industrial applications. With a precise 12-inch diameter and 1.0 thickness, it provides a robust base for mounting precision components and equipment.
Enhanced Accuracy: This subplate ensures accurate and stable mounting, minimizing misalignment and reducing vibration. Its solid steel construction maintains its shape and dimensions over time, providing a reliable reference plane for critical alignment procedures.
Versatile Use: The Jergens 49109 is highly versatile, suitable for various mounting setups. Its flat surface allows for direct mounting of parts or the use of additional mounting hardware. It is essential for applications where precision alignment and stability are crucial, such as precision machining, gauging, inspection, and assembly processes.
Improve Efficiency and Productivity: By providing a solid and stable mounting foundation, the Jergens 49109 subplate contributes to enhanced efficiency and productivity. It helps minimize setup time, reduces rework, and ensures accurate results in your industrial operations.
Trust our HVAC supply store for Quality and Fast Shipping:
At our HVAC supply store, we are dedicated to providing the best prices and fast shipping for all your industrial supply needs. Order your Jergens 49109 steel subplate today, and experience the difference in quality and service.
Specifications
Item Number | 49109 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Ball Lock Mounting System |
SubCategory 4 | Subplates |
SubCategory 5 | Ball Lock Round Subplates |
Type | Ball Lock Round Subplates |
