49103 | SUB-PLATE, 500MM STEEL | Jergens

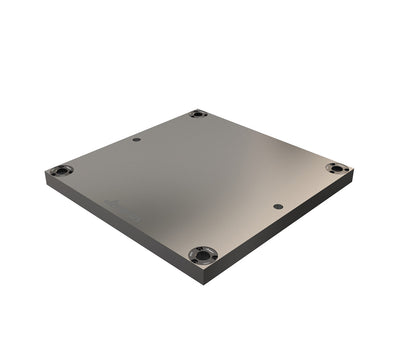

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 49103
Documents and manuals
Jergens 49103 Documents
Overview
Details for 49103
Jergens 49103 Sub-Plate for 500mm Slide Tables
The Jergens 49103 Sub-Plate is a precision machined component designed to provide a stable and secure mounting surface for 500mm slide tables. Constructed from durable steel, it offers superior strength and rigidity for demanding industrial applications. Its optimized design ensures accurate positioning and alignment, minimizing downtime and maximizing productivity.
The 49103 Sub-Plate is ideal for applications requiring precise positioning and movement of components. Its 500mm length allows for ample mounting space, accommodating a wide range of slide tables. The precision-machined surface ensures smooth and accurate movement of components, reducing wear and tear on both the sub-plate and the slide table.
Overall, the Jergens 49103 Sub-Plate is an essential component for engineers and maintenance professionals seeking a reliable and durable mounting solution for their industrial applications.
Features:
* Precision machined steel construction for superior strength and rigidity
* 500mm length for ample mounting space
* Optimized design for accurate positioning and alignment
* Ideal for demanding industrial applications requiring precise component movement
Shop our HVAC supply store today for the best prices and fast shipping on all your industrial products!
Specifications
Item Number | 49103 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Ball Lock Mounting System |
SubCategory 4 | Subplates |
SubCategory 5 | Subplates for Tooling Columns |
Type | Subplates For Tooling Columns |
