39526 | SINE FIXTURE KEY, 16MM DIA | Jergens

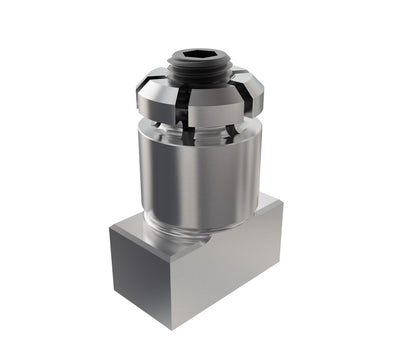

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 39526
Documents and manuals
Jergens 39526 Documents
Overview
Details for 39526
SINE FIXTURE KEY, 16MM DIA
Jergens Sine Fixture Key is a precision-engineered tool designed for accurate and repeatable positioning of workpieces in sine fixtures. With a diameter of 16 mm, this key is compatible with fixtures using similar diameter keys. It ensures precise angular positioning of the workpiece, enabling the creation of complex angles and profiles. The key is made of high-grade steel for durability and longevity, providing consistent performance in demanding industrial environments. Its precise manufacturing ensures a snug fit within the fixture, minimizing backlash and maintaining stability during machining operations. Whether you're a seasoned industrial engineer or a maintenance professional, the Jergens Sine Fixture Key is an essential tool for precision angle setup and workpiece positioning in various machining applications.
Shop now at our HVAC supply store for the best prices and fast shipping on Jergens Sine Fixture Keys!
Specifications
Item Number | 39526 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Workholding & Locating Components |
SubCategory 3 | Fixture Keys |
SubCategory 4 | Multi-Slot Sine Fixture Keys |
Type | Multi Slot Sine Fixture Keys |
