38825 | SETUP STUD, 3/4-10 X 5 | Jergens

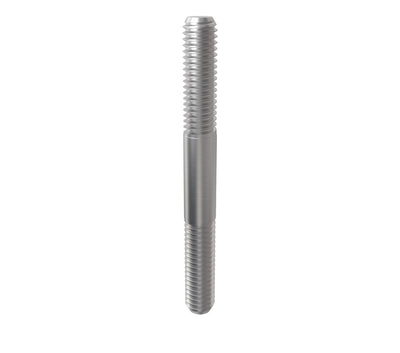

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 38825
Documents and manuals
Jergens 38825 Documents
Overview
Details for 38825
**Jergens 3/4-10 x 5 Setup Stud**
**SKU:** 38825
**Description:**
The Jergens 38825 Setup Stud is a precision-engineered component designed to provide secure and accurate positioning of workpieces during machining operations. Constructed from durable steel, this stud ensures rigidity and stability throughout the manufacturing process. Its 3/4-10 thread size and 5-inch length make it suitable for a wide range of applications.
**Features:**
* Precision-ground for accurate positioning
* Hardened steel construction for durability
* 3/4-10 thread size for secure mounting
* 5-inch length provides ample reach
**Benefits:**
* Ensures precise alignment and stability during machining
* Eliminates setup errors and reduces rework
* Withstands high loads and demanding conditions
* Improves productivity and cost-effectiveness
**Applications:**
* CNC machining
* Milling and drilling operations
* Fixture and tooling setup
* Machine setup and alignment
For the best selection and fast shipping on industrial components, choose our HVAC supply store. We offer competitive prices and expert support to ensure you have the products you need, when you need them.
Specifications
Item Number | 38825 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Workholding & Locating Components |
SubCategory 3 | Workholding Hardware |
SubCategory 4 | Studs |
SubCategory 5 | Stainless Steel Set-Up Studs |
Type | Stainless Steel Set Up Studs |
