30131 | ZPS, SUBPLATE, K20.3, (4) STATION, 2 X 2 | Jergens

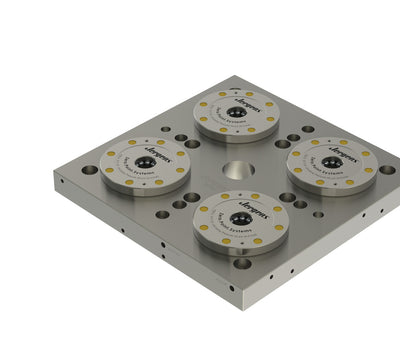

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 30131
Documents and manuals
Jergens 30131 Documents
Overview
Details for 30131
**ZPS Subplate: Jergens 30131**
The Jergens 30131 ZPS Subplate is engineered for precision alignment and mounting of fixtures in automated manufacturing processes. Its rigid construction, made from high-quality materials, provides stability and durability in demanding industrial environments.
Key Features:
* **K20.3 Compatibility:** Fits standard K20.3 fixture platens for seamless integration.
* **4-Station Design:** Allows for the placement of multiple fixtures or components simultaneously.
* **2 x 2 Configuration:** Provides a compact footprint for space-saving mounting.
Benefits:
* Enhanced accuracy: Ensures precise positioning of fixtures for optimal performance.
* Increased productivity: Multiple fixture mounting capability streamlines production processes.
* Reduced downtime: Durable construction minimizes maintenance requirements.
Applications:
* Precision assembly
* Automated welding
* Robotics and automation
* Tooling and fixturing
Shop our HVAC supply store today for the best deals on the Jergens 30131 ZPS Subplate and all your industrial supply needs!
Specifications
Item Number | 30131 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Zero Point Mounting System |
SubCategory 4 | Pneumatic Subplates |
SubCategory 5 | K20.3 Subplate-4 Module |
Type | K203 Subplate 4 Module |
