28745 | FIXTURE PLATE, 20 X 22 X 1.00 | Jergens

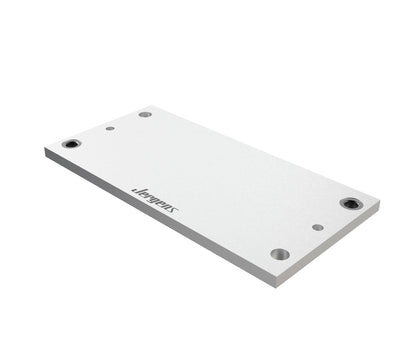

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 28745
Documents and manuals
Jergens 28745 Documents
Overview
Details for 28745
Jergens Fixture Plate
SKU: 28745
The Jergens 28745 Fixture Plate is a high-precision component designed to provide a stable and accurate surface for mounting and positioning workpieces in various manufacturing and assembly operations.
Features:
* Dimensions: 20" x 22" x 1.00"
* Durable construction with precision-machined surfaces
* Provides a flat and level reference for precise alignment
* Made from high-grade materials for strength and rigidity
* Versatile design allows for multiple mounting configurations
Applications:
The Jergens 28745 Fixture Plate is ideal for:
* Holding workpieces during machining, assembly, and inspection
* Precision alignment and positioning of components
* Fixture and tooling setup
* As a base plate for jigs and fixtures
* Prototyping and customization
Our HVAC supply store offers the best prices and fastest shipping on the Jergens Fixture Plate. Contact us today to place your order!
Specifications
Item Number | 28745 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Ball Lock Mounting System |
SubCategory 4 | Columns |
SubCategory 5 | Ball Lock Tooling Columns |
Type | Ball Lock Tooling Columns |
