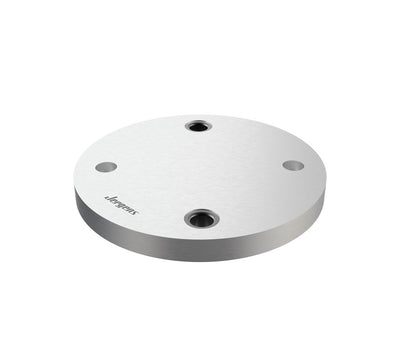

28709 | FIXTURE PLATE, AL,12IN DIA X 1.0 | Jergens
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 28709
Documents and manuals
Jergens 28709 Documents
Overview
Details for 28709
**Fixture Plate for Precision Alignment and Machining**
The Jergens 28709 Fixture Plate is a high-precision workholding solution designed for industrial engineers and maintenance professionals. Made from durable aluminum, this 12-inch diameter plate provides a flat and stable surface for mounting and aligning components during machining and assembly operations.
**Features:**
* Precision-machined aluminum construction for accuracy and durability
* 12-inch diameter for ample workspace
* Ideal for holding workpieces during milling, drilling, and grinding
* Multiple mounting holes for versatile use with various fixtures and accessories
**Benefits:**
* Ensures precise alignment of components for accurate machining
* Improves productivity by reducing setup time and scrap
* Protects delicate workpieces from damage during machining
* Compatible with a wide range of industrial applications
**Applications:**
* Precision machining and assembly operations
* Tool and die making
* Aerospace and automotive manufacturing
* Educational institutions
Shop our HVAC supply store today for the Jergens 28709 Fixture Plate and enjoy the best prices and fast shipping on all your industrial equipment needs!
Specifications
Item Number | 28709 |
Brand | Jergens |
SubCategory 1 | Workholding Solutions |
SubCategory 2 | Quick Change Fixturing - Ball Lock - ZPS - Drop & Lock - Quick-Loc |
SubCategory 3 | Ball Lock Mounting System |
SubCategory 4 | Fixture Plates |
SubCategory 5 | Ball Lock Round Fixture Plates |
Type | Ball Lock Round Fixture Plates |
