VA9104-IGA-2S | ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W48" CABLE | Johnson Controls

ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W48" CABLE

Description

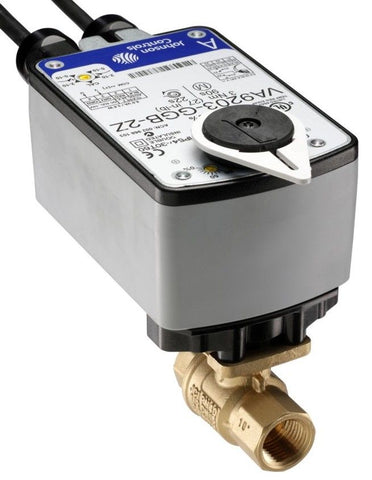

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V or 100 to 240 V power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lbin (4 Nm). The nominal travel time is 60 seconds at 60 Hz for 90° of rotation. Refer to the VA9104 Series Electric Non-Spring Return Valve Actuators Product Bulletin (LIT-12011050) for important product application information.

Features

• 35 dBA Maximum Audible Noise Rating
• Synchronous Drive
• 100,000 Cycle Rating
• Direct Mounting with Single Screw
• Manual Override
• Plenum Cable or Screw Terminal Electrial Connections
• 3/8 in. Flexible Metal Conduit Connector on VA9104-xxA-2S Models
• Available Weather Shield for Field Mounting
• Optional M9000-561 Thermal Barrier
• 5-Year Warranty
